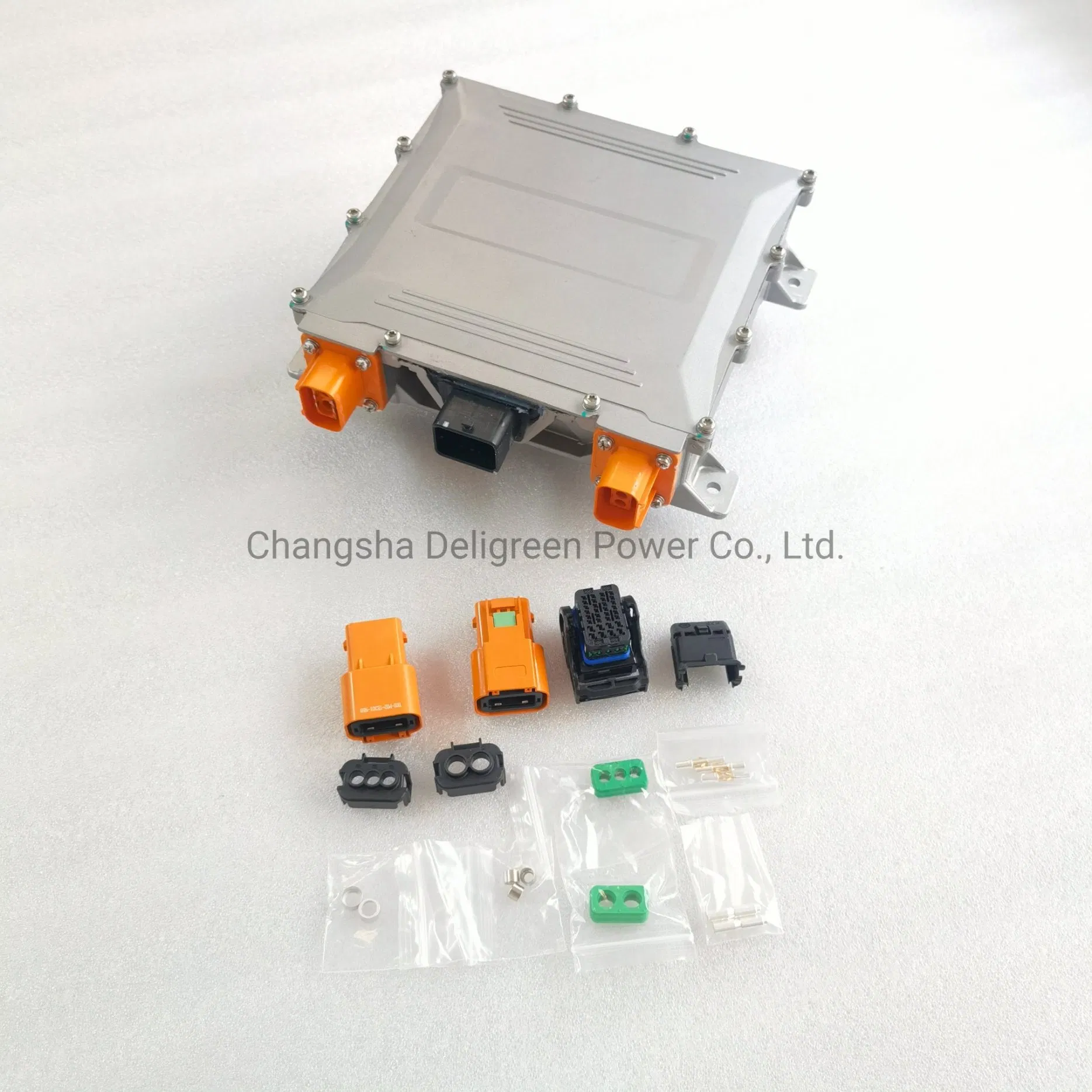

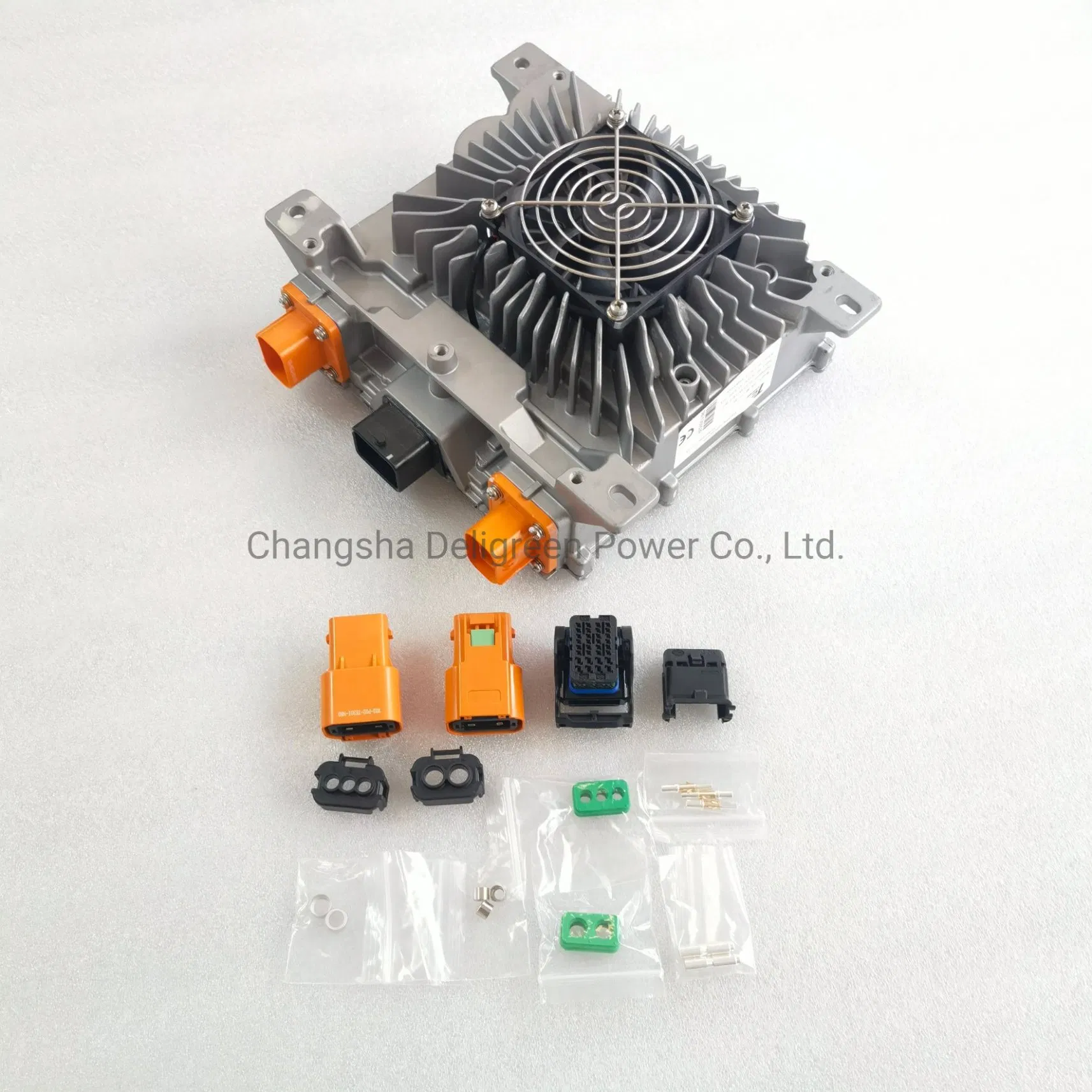

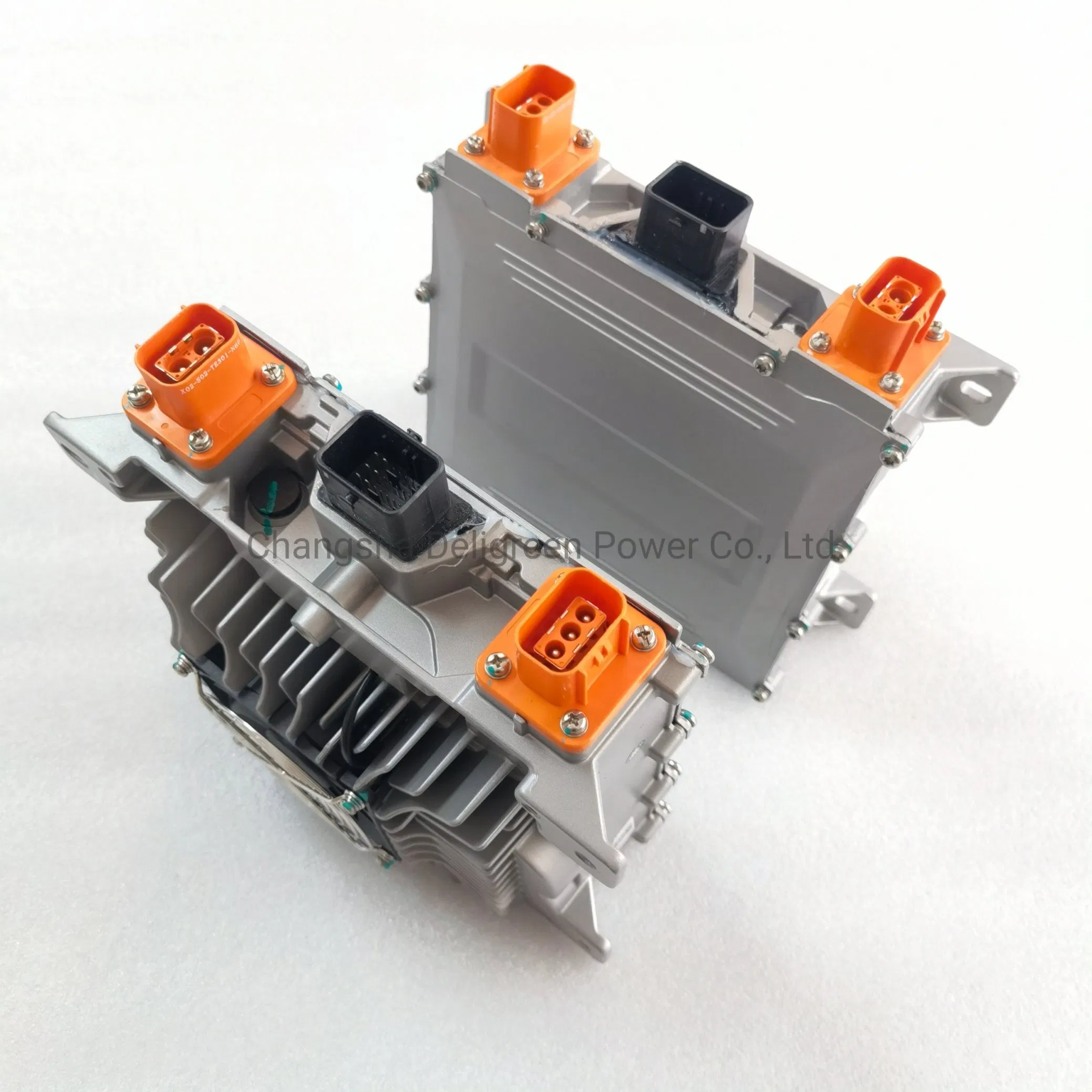

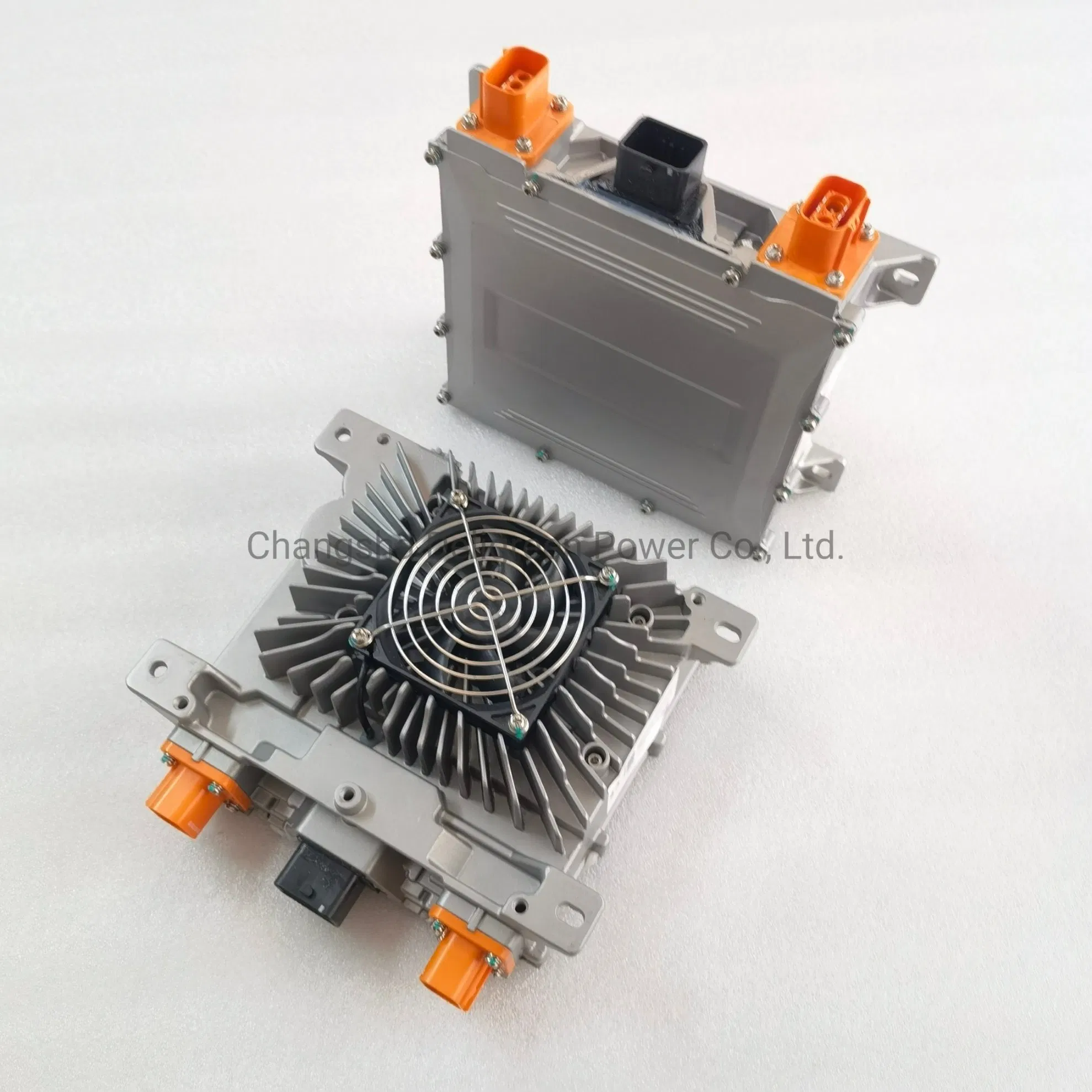

Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
1 / 5
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers
Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers

Charger Waterproof 3.3kw HK-Mf-144-23 144V 23A Battery Charger for Golf Cart Lithium Lead Acid on-Board Battery Chargers

Customization: Available
After-sales Service: 3 Years
Usb Number: 1
Send Inquiry

Product Description

1

Overview & Basic Info

Model NO.
HK-MF-144-23 3.3kw
Certification
CE, ISO, EMC
Usage
EV / Golf Cart
Battery Type
LiFePO4, Ncm, Lead Acid
Input Voltage
110V or 220V
Power Options
1.8kw / 3.3kw / 6.6kw
Intelligent Charge
Yes
Protection Class
IP67 Waterproof
Communication
CAN / Enable
Warranty
1 Year
2

Product Description

Charger Waterproof HK-MF & HK-L Series is specifically designed for electric vehicle power battery systems according to national charging standards. This product offers high efficiency, high stability, and a long life cycle with comprehensive protection functions.

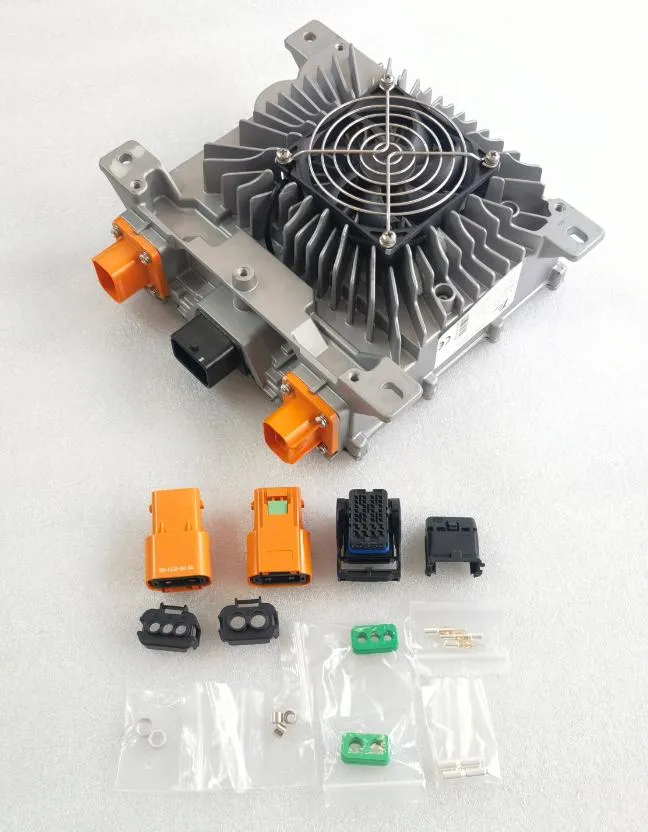

HK-MF-144-23 Battery Charger

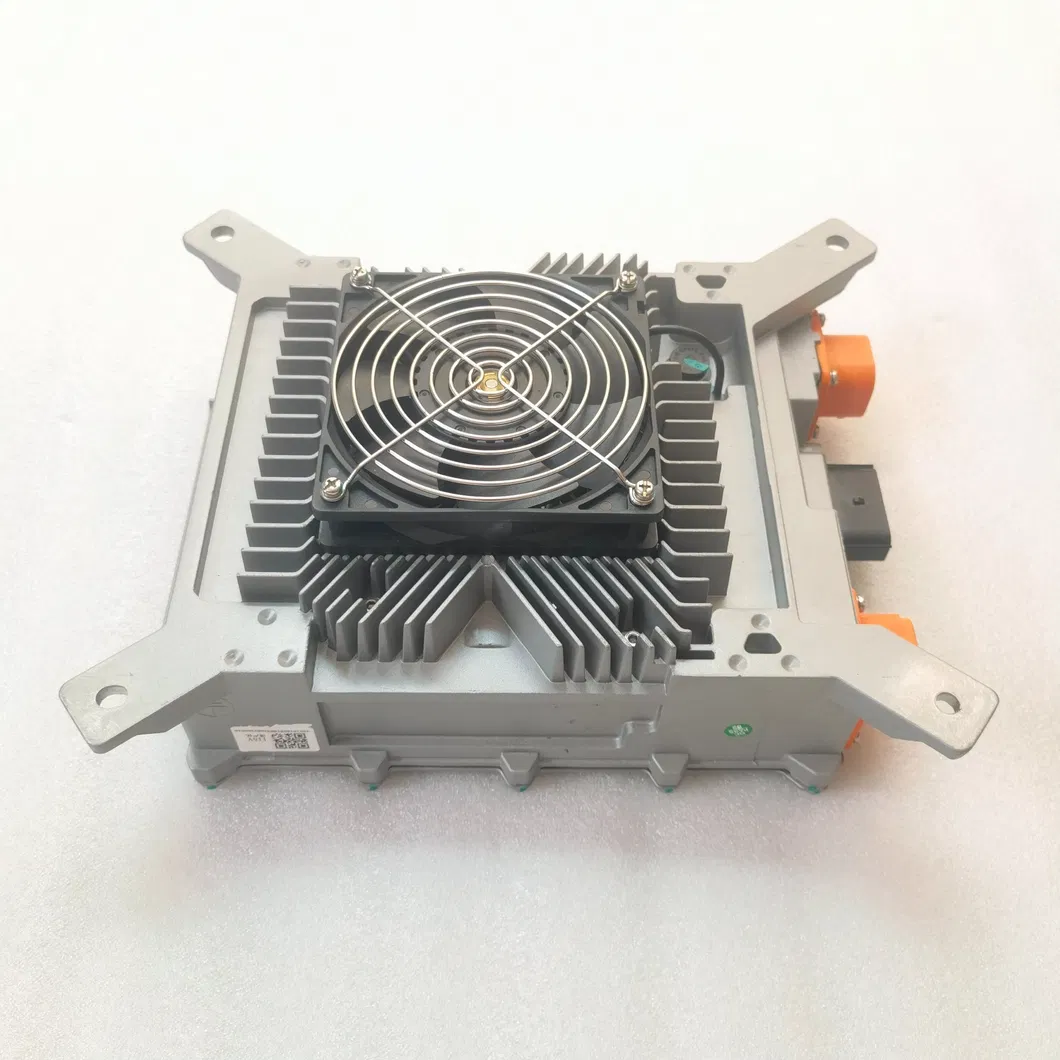

On-board Battery Charger

Key Features

  • UDS Diagnosis: Supports CAN wake-up function for advanced communication.
  • Fully Sealed Process: Reliable operation under extreme temperatures (-40ºC to +85ºC).
  • Thermal Protection: Built-in temperature sensor automatically shuts down output under hazardous conditions (Internal 90°C).
  • IP67 Waterproof: Safe for operation under short-term water immersion conditions.
3

Product Parameters

HK-M Series 3.3KW Charger Specifications

Voltage Platform 48V 72V 96V/108V 144V
Output Voltage Range 30~66V 50-99V 65~140V 90~195V
Output Current 40A 40A 32A 23A
Input Voltage AC 90~265V
Full Load Efficiency ≥93%

HK-L Series 6.6KW Charger Specifications

Voltage Platform 96V/108V 144V 312V 540V
Output Voltage Range 65~140V 90~195V 250~450V 350~680V
Output Current 60A 46A 20A 14A
Power Output 6600W@220VAC / 3300W@110VAC
4

Performance & Efficiency

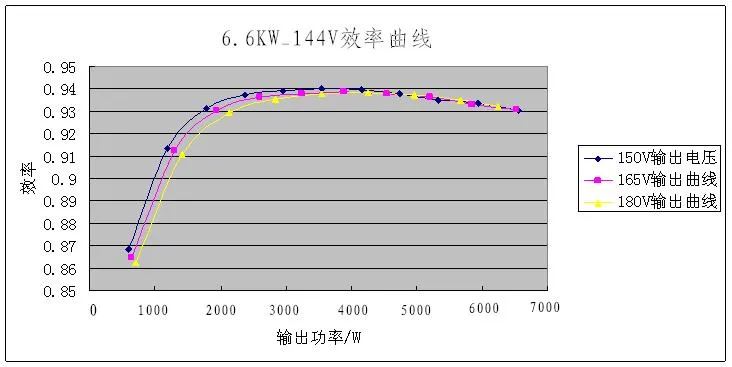

Efficiency Curve

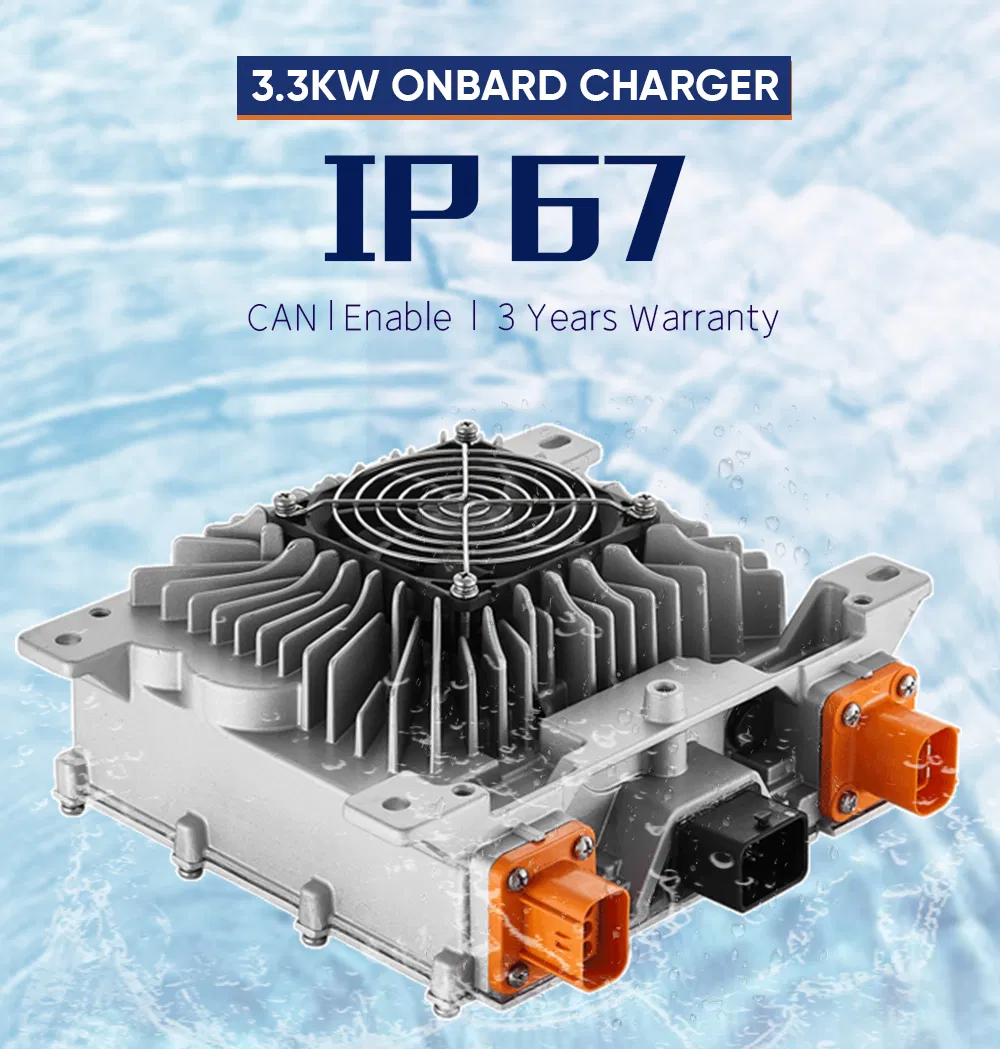

Charger Detail 1

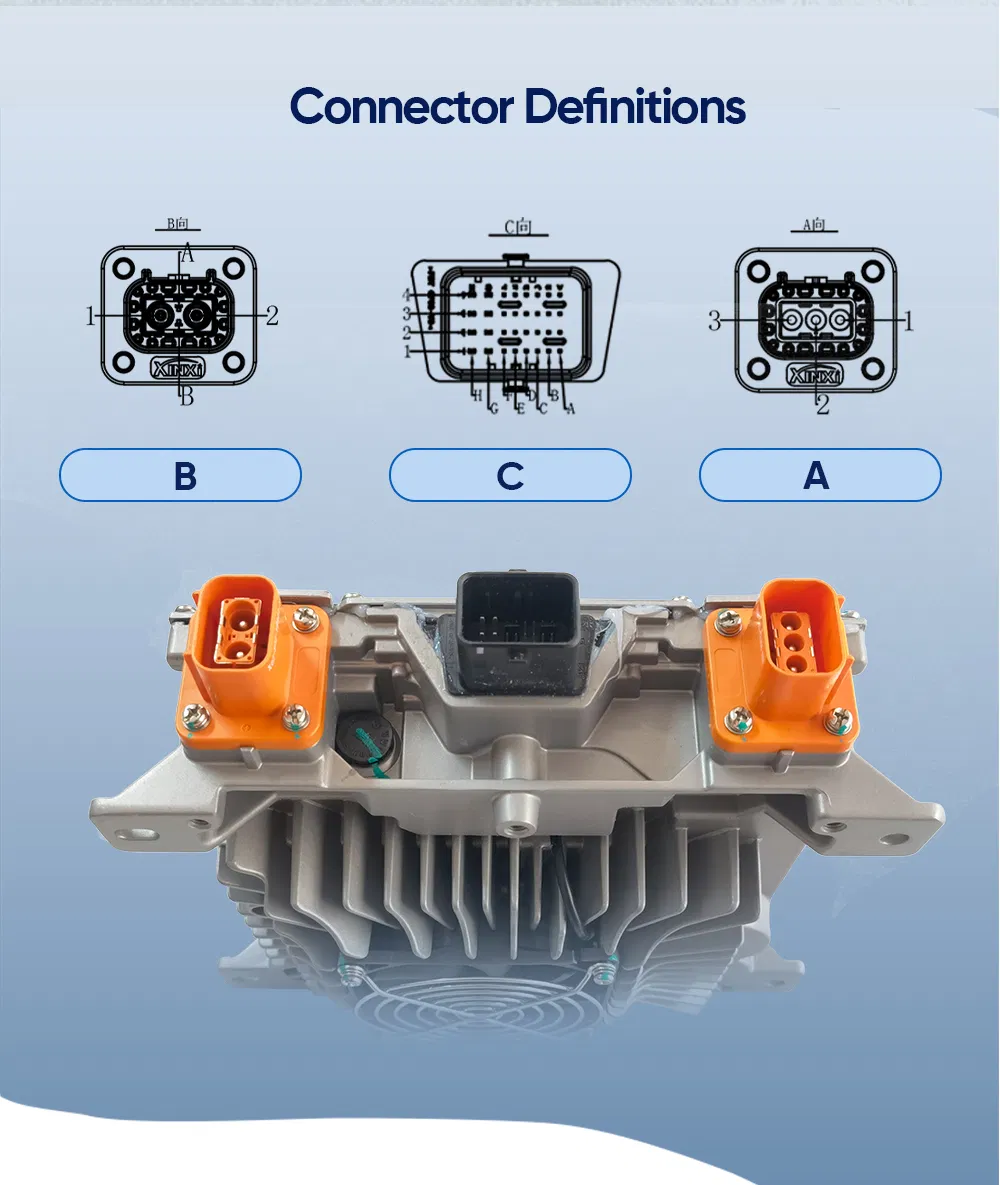

Charger Detail 2

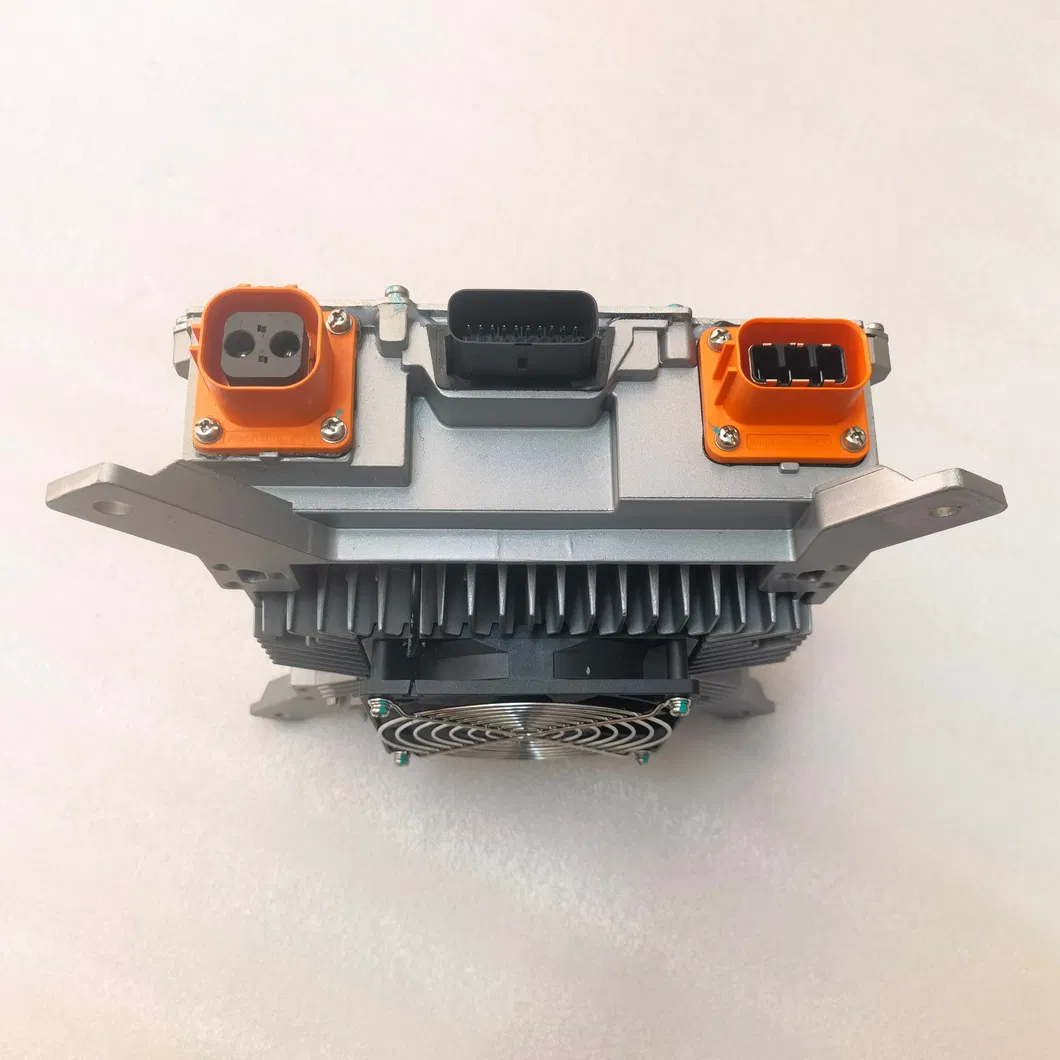

Charger Detail 3

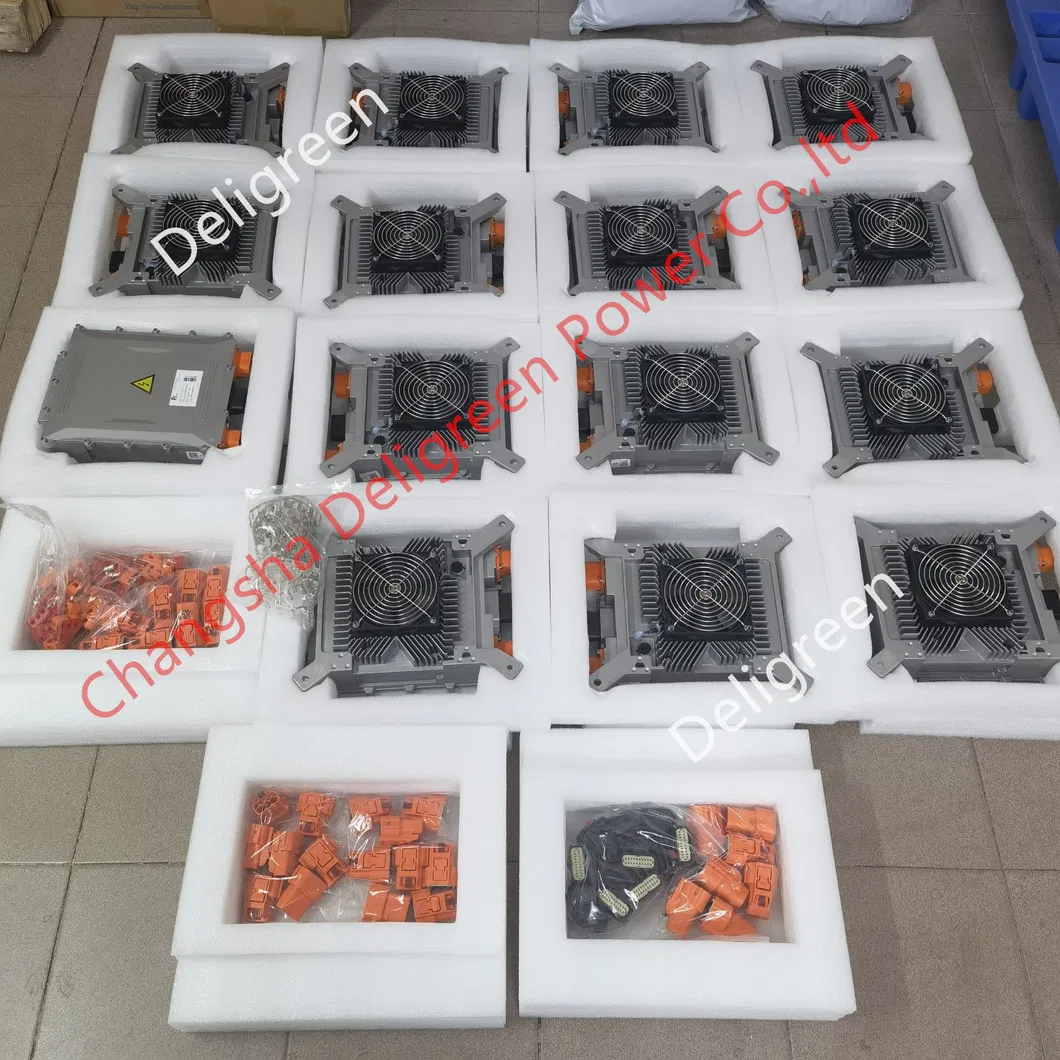

Charger Detail 4
5

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packaging 1

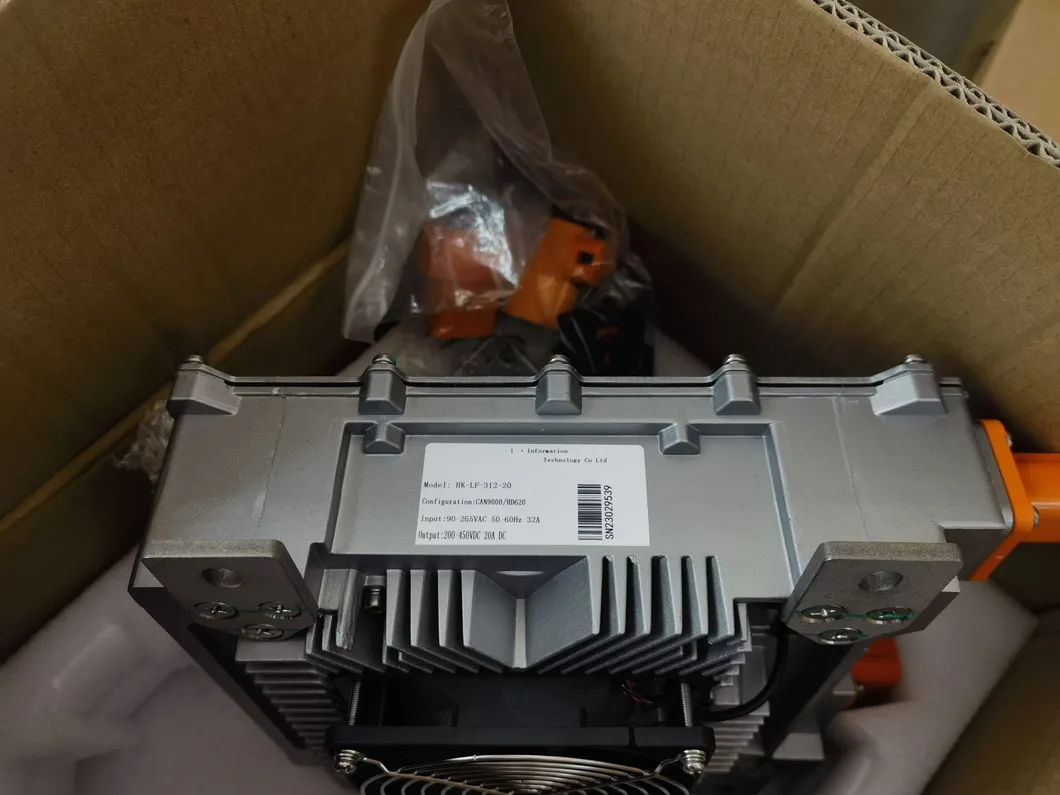

Packaging 2
Packaging 3

Frequently Asked Questions

Is the charger compatible with different battery types?
Yes, it is compatible with Lithium Iron Phosphate (LiFePO4), NCM Lithium, and Lead-Acid batteries.
What is the waterproof rating of this charger?
The charger has an IP67 protection class, making it safe for short-term water immersion and dusty environments.
Can I use this charger for both 110V and 220V power sources?
Yes, the charger supports a wide input voltage range from 90V to 265V AC.
Does the charger have communication ports?
Yes, it supports CAN communication and Enable functions for intelligent charging control.
How does the charger handle overheating?
It has a built-in temperature sensor that will shut down output if the internal temperature reaches 90°C to prevent damage.
What applications is this charger suitable for?
It is ideal for electric vehicles (EV), golf carts, electric boats, and other battery-powered industrial equipment.
