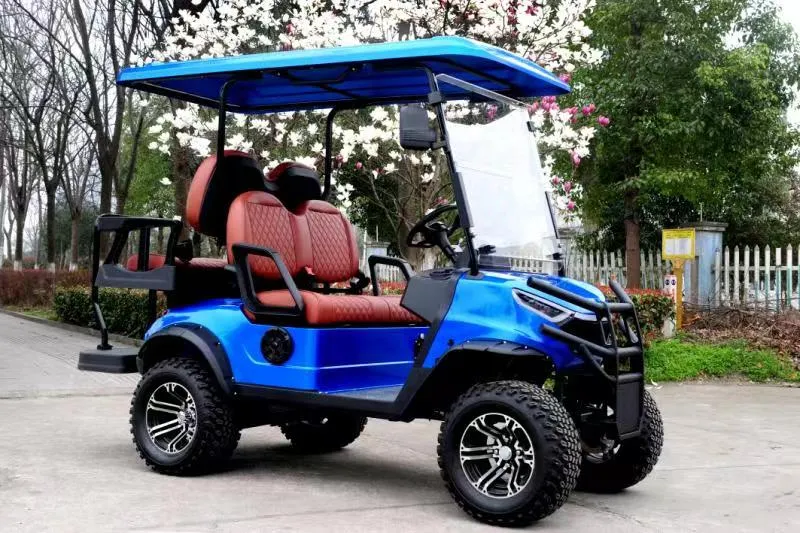

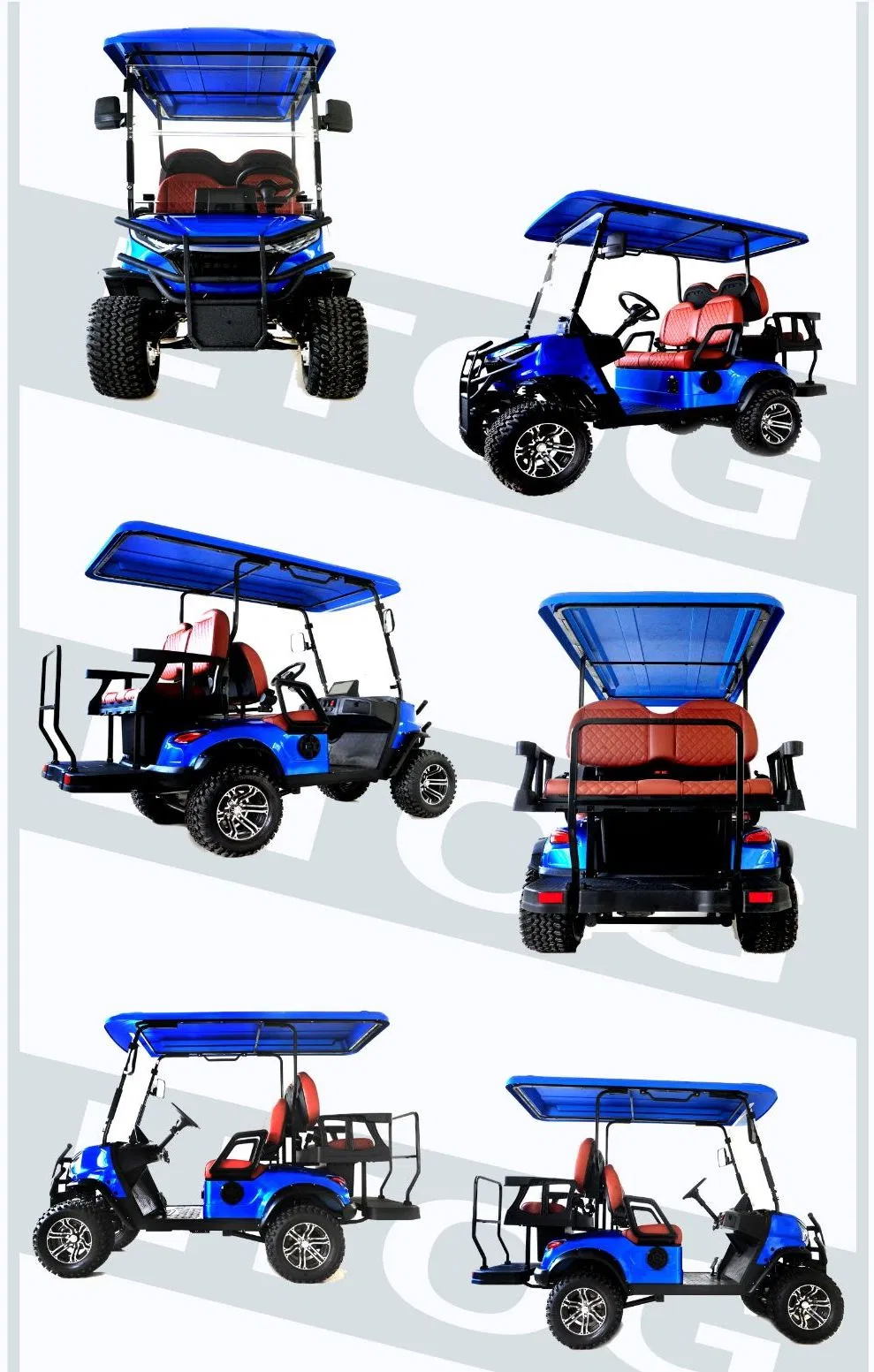

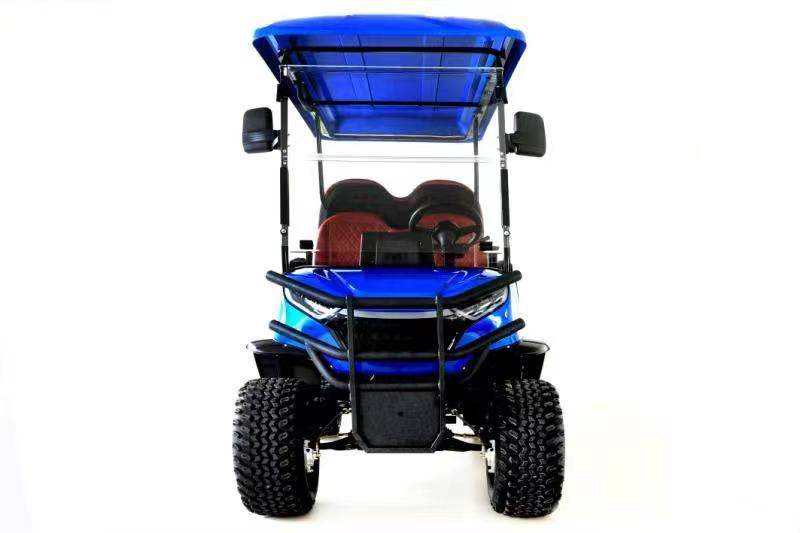

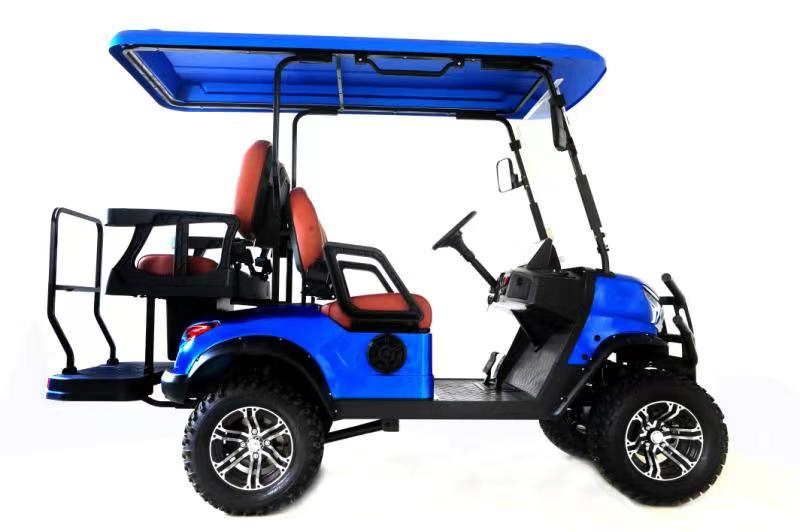

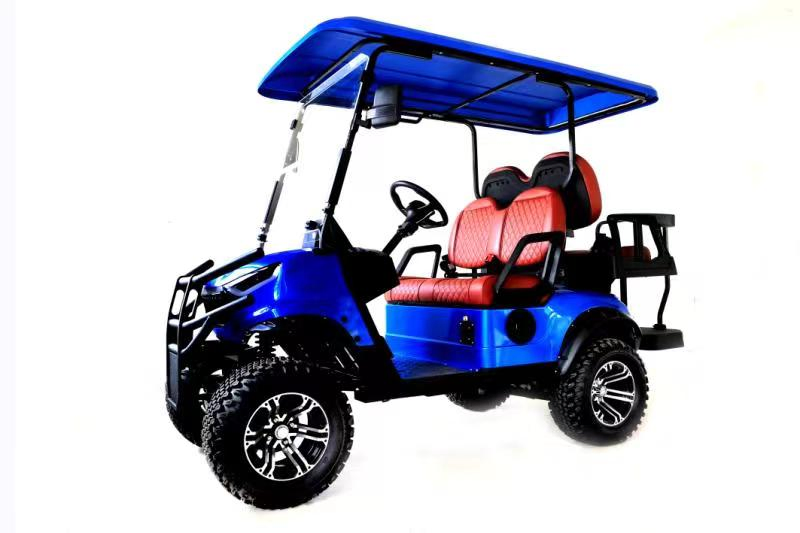

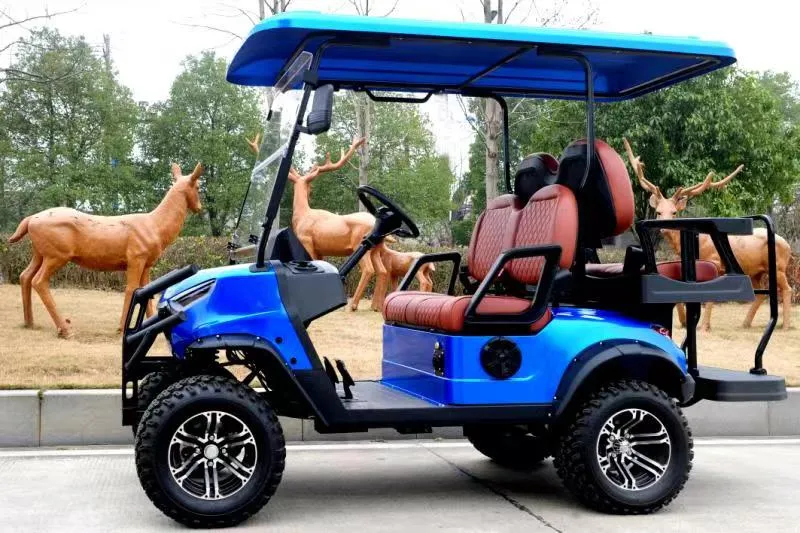

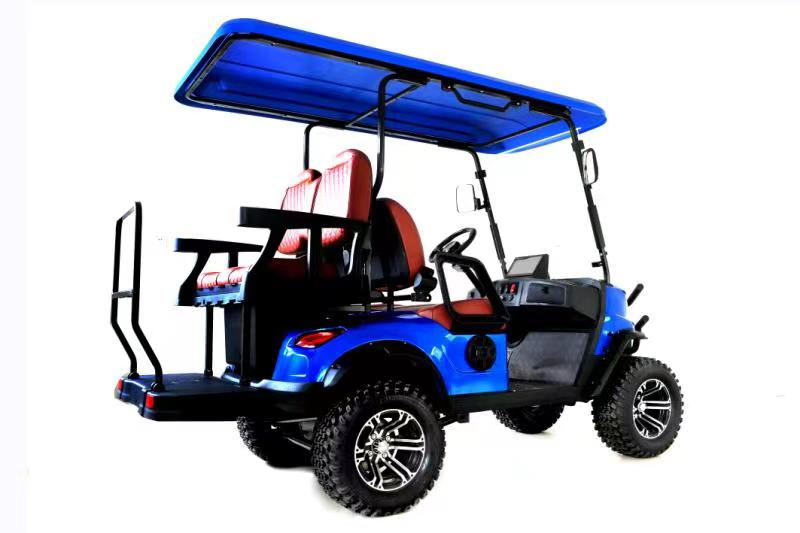

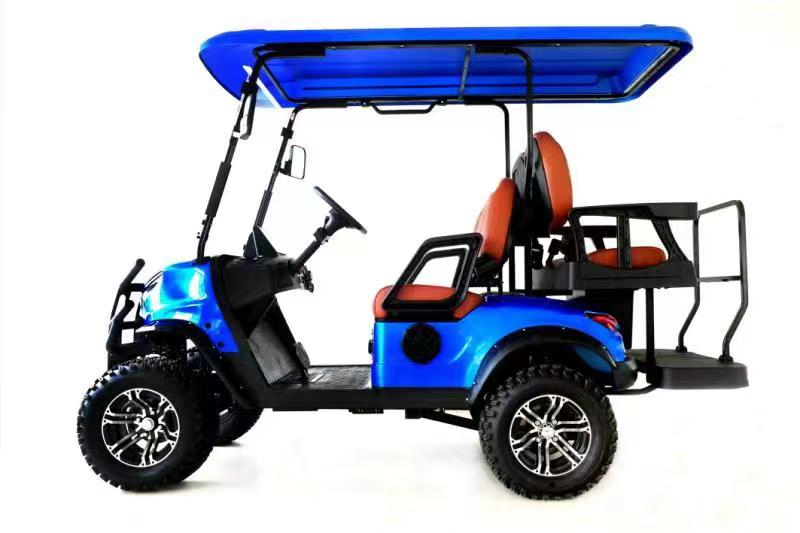

Grade a lithium Battery 4 Seater Golf-Cart off Road Golf Cart

📊

Basic Information

Model NO.	EL2+2	Power	5kw
Fuel Type	Electric	Max Speed	>30 km/h
Gradeability	20-30%	Voltage	48V
Battery	48V 150ah Lithium Battery	Dimensions	290013402060mm
Controller	Kds AC Controller 350AMP	Motor	48V/5kw Drive Motor(AC)
Charging Time	8-10h	Tire	23*10.5-12
Mileage	80-100km	Certification	CE, EEC, ISO, DOT

🛠️

Product Specifications

Parameters Specification Sheet
Body Structure	Wheel base	1680mm
	Track width	1020/1080mm
	Ground clearance	190mm/170mm
	Load Capacity	400kg
	Net weight	510kg
Core Power	Motor	48V/5KW Drive Motor(AC)
	Controller	KDS Ac Controller 350amp
	Battery	Grade A Lithium battery 48V 150Ah (5-year guarantee)
	Charger	On-Board High Frequency Battery Charger
Control System	Steering Gear	R&P, Bidirectional Output
	Brake System	Four wheel disc brake hydraulic brake
	Parking	Electromagnetic parking

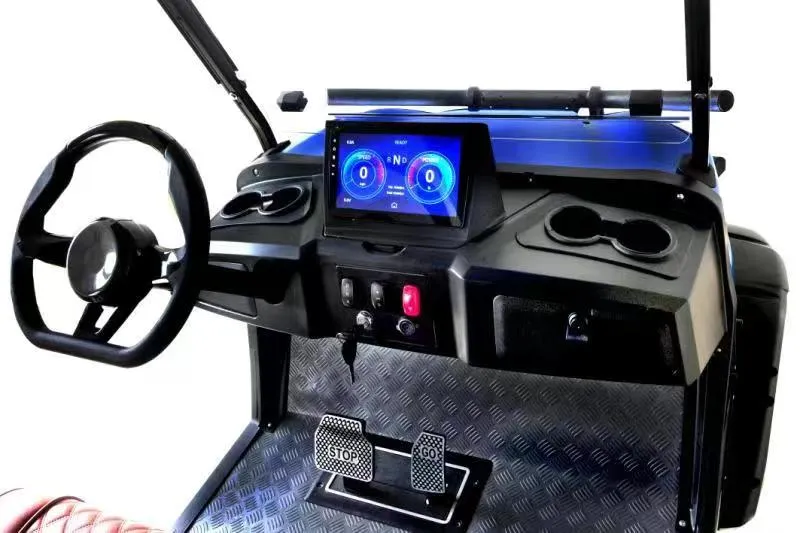

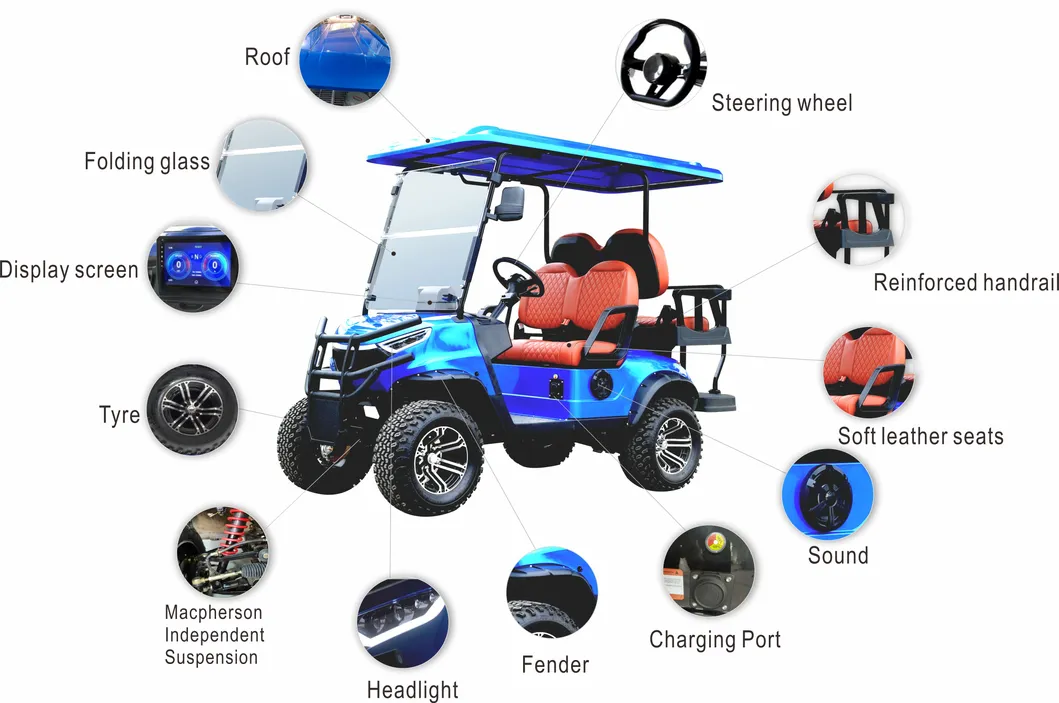

⭐ Key Features: LCD Dashboard with Speedometer, Odometer, and Battery indicator. USB Charging Ports included. Full LED Lighting System with Daytime Running Lights.

🎨

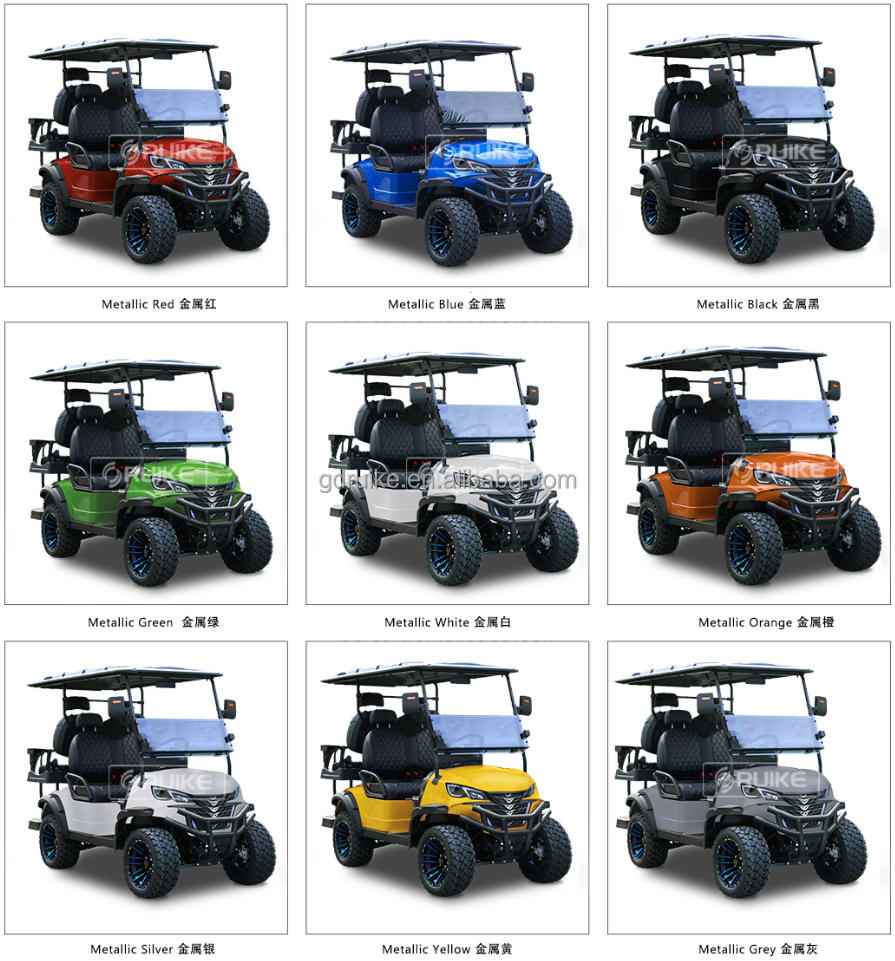

Customization & Colors

1. We provide full color customization services based on your specific requirements.
2. Support for Pantone code matching to customize your fleet colors.

👨‍🔧

Our Services

Technical Support & Warranty

Troubleshooting instructions, electric diagrams, and motor controller access provided. Warranty: 3 years for lithium batteries, 1 year for other components. FOC spare parts supplied for replacements.

OEM & ODM Solutions

Wide range of optional accessories to make vehicles unique. Custom mould development for specific body designs is available at reasonable costs.

📦

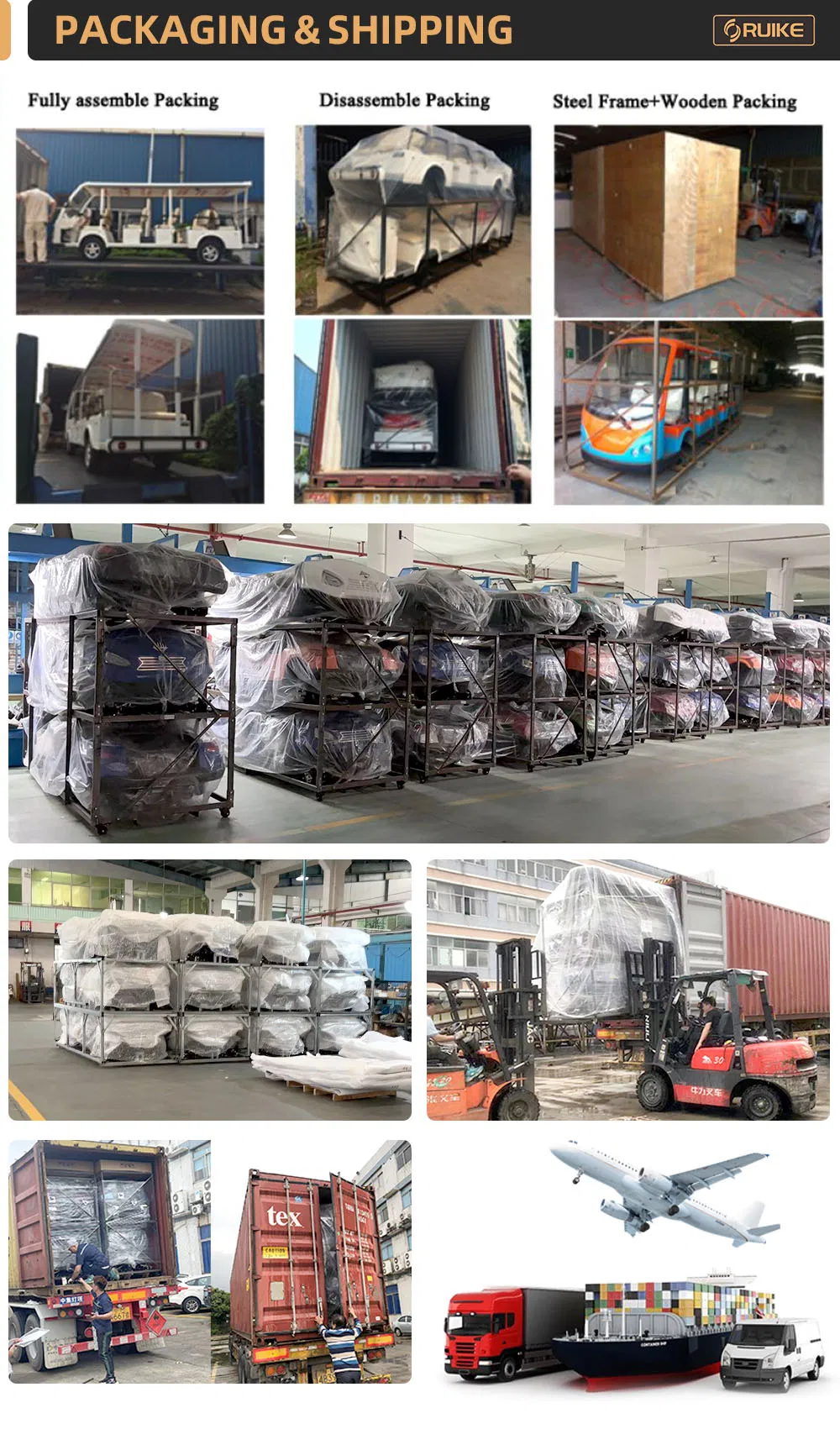

Packaging & Shipping

• LCL Shipping: Wrapped in film, fastened to steel crates, and covered with galvanized steel plates.
• FCL Shipping: Packed in secured steel crates for maximum safety.
• Shipping Terms: Supports FOB, CIF, DDP, and DDU services.

🏢

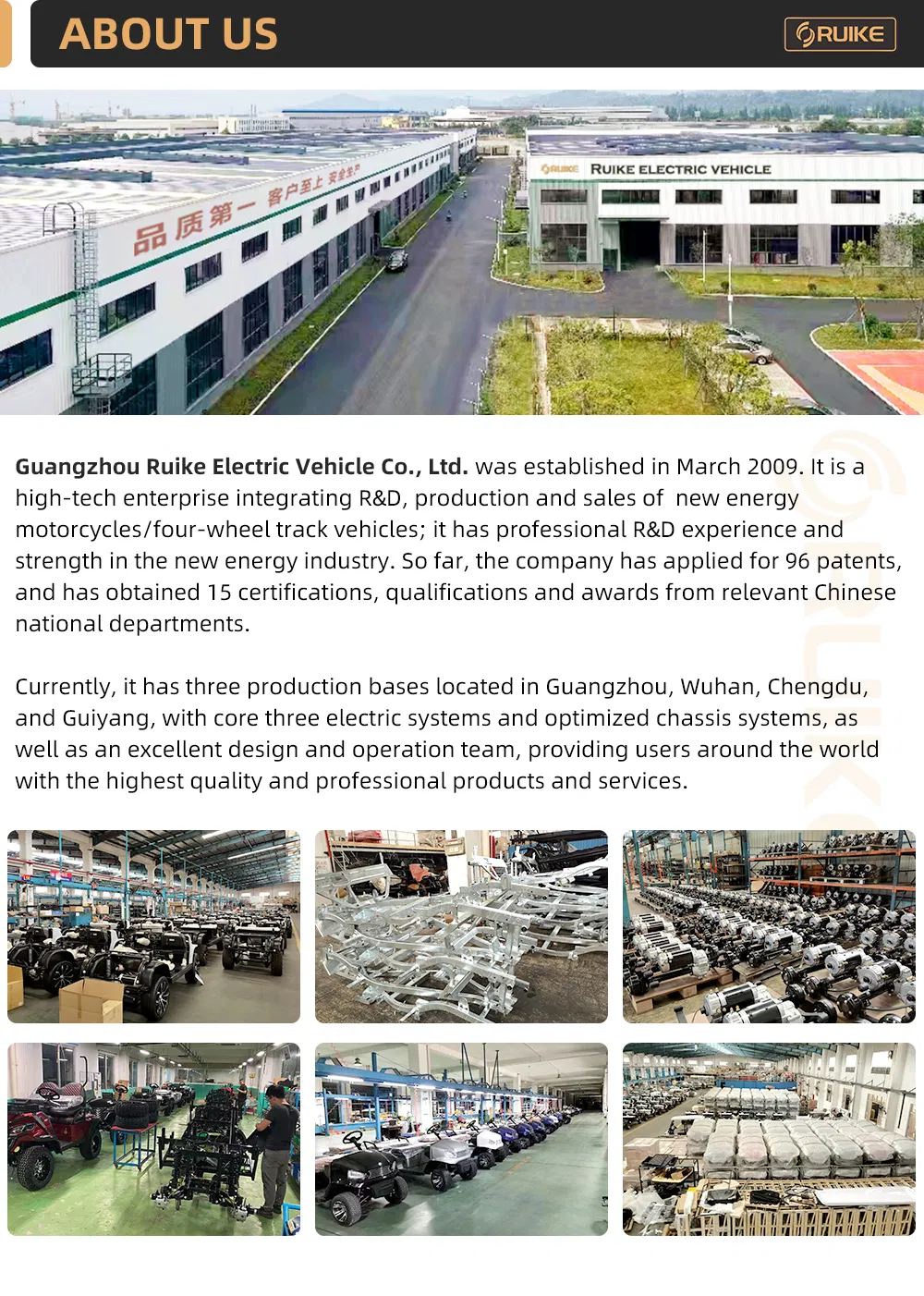

Why Choose Us

25+ Years Experience: Deep expertise in the electric vehicle industry.
High Capacity: 3 production lines with a yearly capacity of 15,000 units.
Global Reach: Exported to over 40 countries, used in golf courses, resorts, and campuses.
Diverse Models: 10 categories and 100+ models for various applications.

❓

Frequently Asked Questions

Q1. Can you customize vehicles for special requests?

Yes, we customize vehicles based on special requests with reasonable costs and lead times, provided the customization does not involve major chassis modifications.

Q2. What is the standard warranty period?

We provide a 1-year general warranty. For any failed parts under warranty, we cover repair costs or send replacements including freight costs. Lithium batteries carry a 3-year warranty.

Q3. Do you provide technical support after purchase?

Yes, we provide technical support via email and phone. If necessary, we can also dispatch engineers to your location for on-site assistance.

Q4. Are spare parts available for older models?

Yes, we provide all spare parts for our vehicles, even up to 5 years after a model has ceased production. We also supply a parts manual for easy identification.

Q5. Do you accept OEM orders?

Yes, we accept OEM orders provided the quantity is reasonable, typically between 300-500 units annually.

Q6. What are the payment terms for international orders?

For new customers, the standard term is a 30% T/T deposit upon order confirmation and 70% T/T before loading. Irrevocable L/C at sight is also acceptable.
