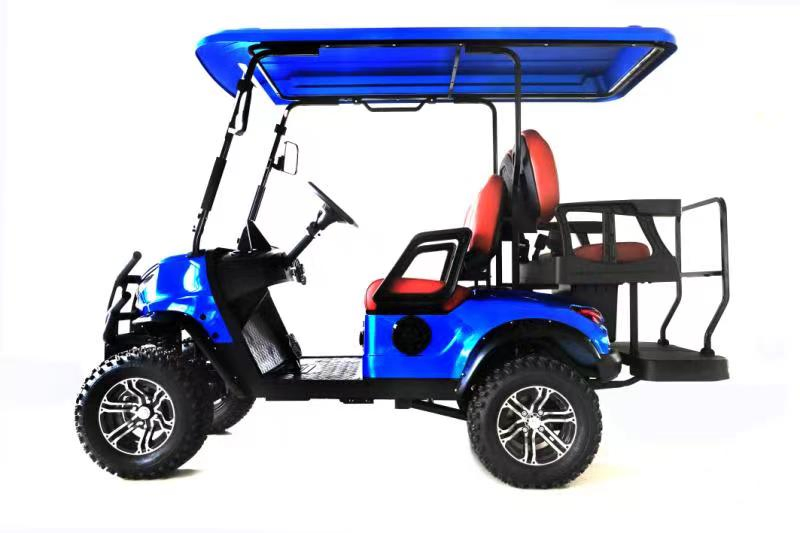

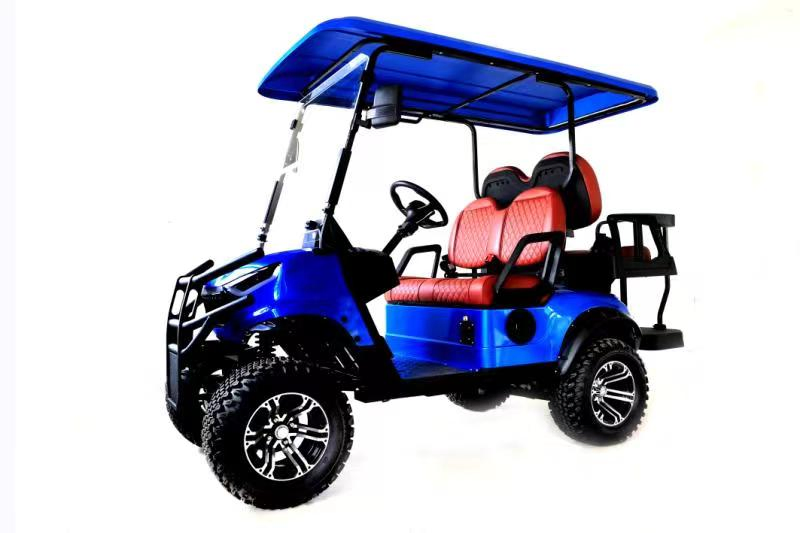

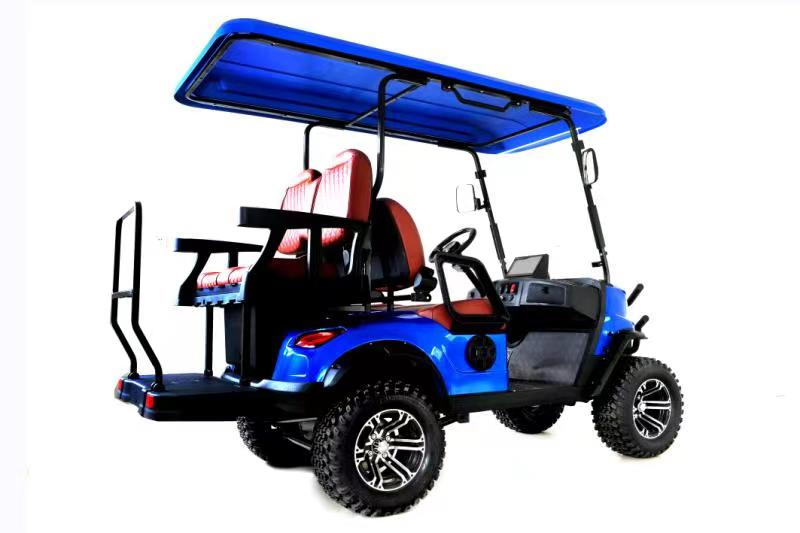

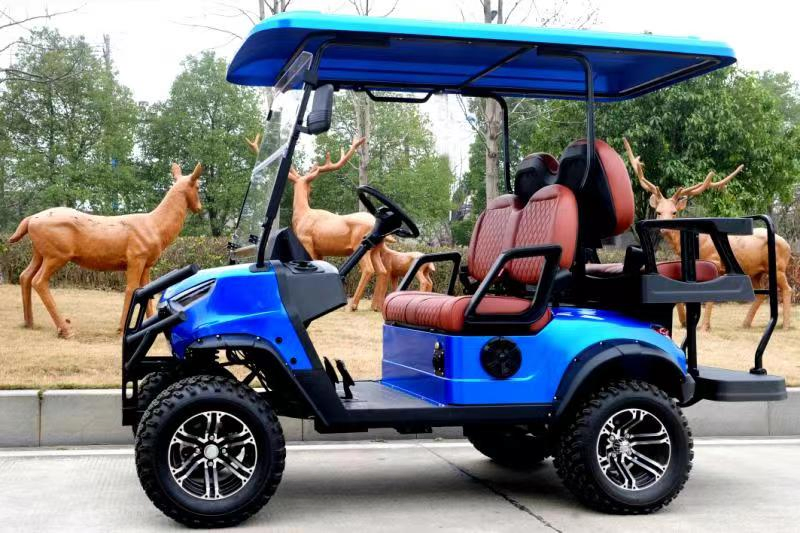

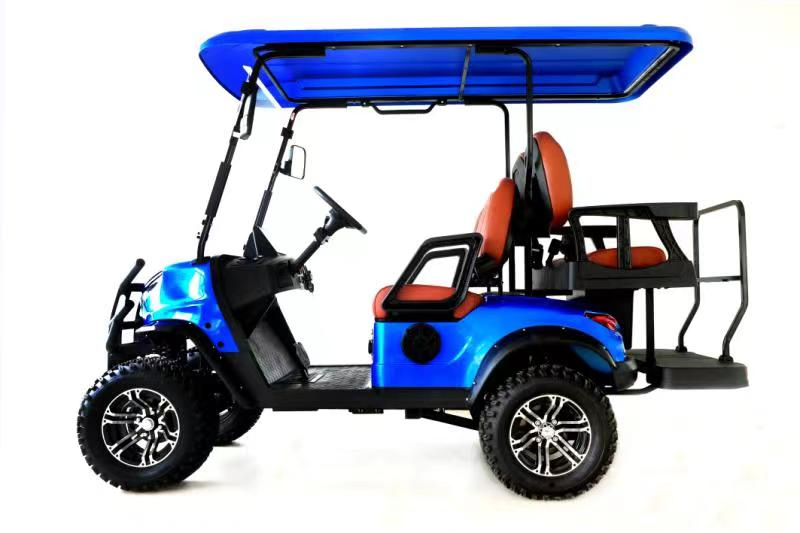

Electric Sightseeing Car Luxury Golf Cart From China Factory

Customization:	Available
Type:	Buggy/Golf Carts
Seats:	3-4

Basic Information

Model NO.

EDGE

Power

600-1700W

Power Fuel

Electric

Maximum Speed

>30 km/h

Gradeability

>30%

Suitable for

Park

Certification

CE

Voltage of Battery

48V

Color

Customizable

Transport Package

Iron Frame

Specification

2900*1340*2060mm

Production Capacity

5000 Units/Year

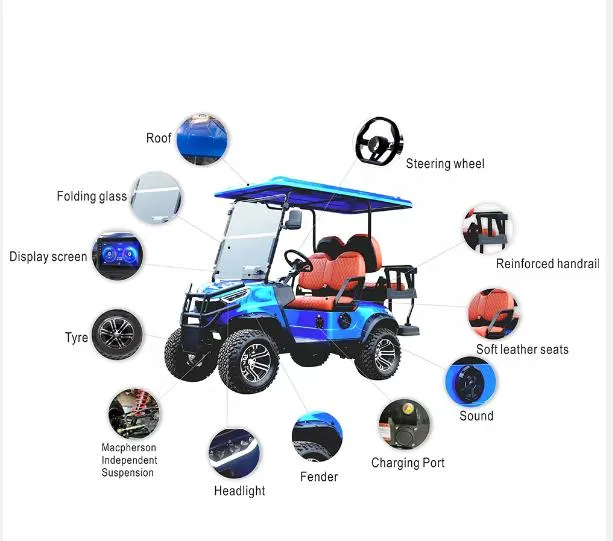

Detailed Product Photos

Technical Specifications

BODY & CHASSIS
Main Body	Wheel base	1680mm
	Track width	1020/1080mm
	Min. Ground clearance	190mm/170mm
	Load / Net Weight	400kg / 510kg
	Dashboard	LCD Dashboard (Speedometer, Odometer, Battery indicator)
	Lights	LED Lighting System (Daytime Running Lights, Headlights, Taillights)
POWER SYSTEM
Performance	Motor	48V/5KW Drive Motor (AC)
	Controller	KDS AC Controller 350amp
	Max. Speed	40km/h
	Battery	Grade A Lithium battery 48V 150Ah (5-Year Guarantee)
	Charging Time	8-10h
STEERING & BRAKING
Steering	Steering Gear	R&P, Bidirectional Output / Electric Power Steering
Braking	Braking System	Four wheel disc brake hydraulic brake
Parking	Parking Type	Electromagnetic parking

Core Advantages

Technical Support

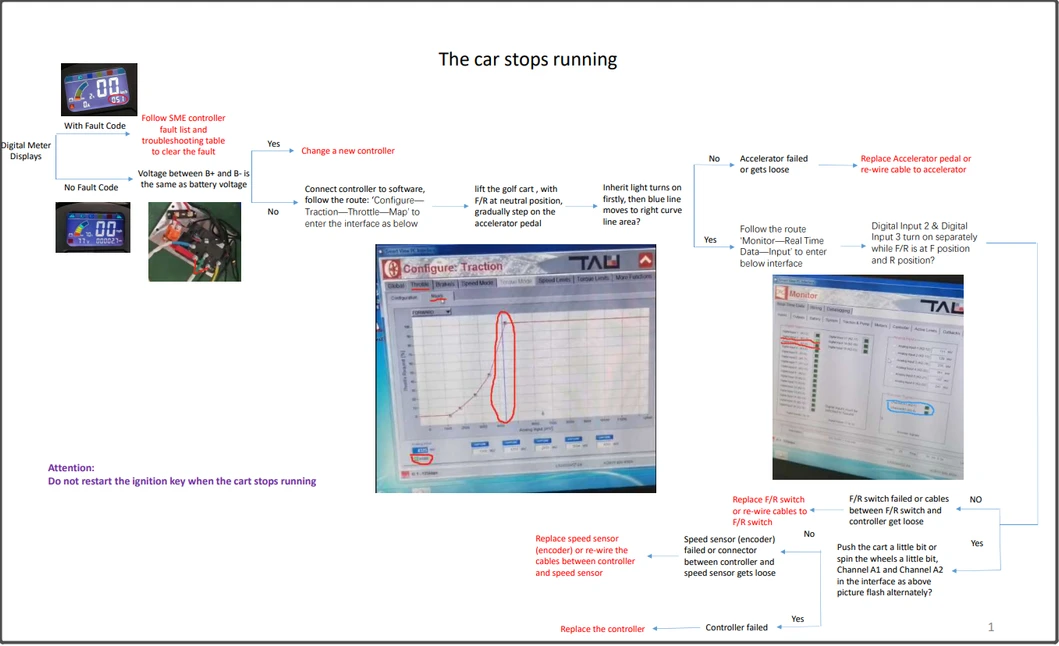

Full troubleshooting instruction, electric diagrams, and motor controller access. 3-year warranty on lithium batteries; 1-year on components.

OEM & ODM Service

Extensive optional accessories to make your golf cart unique. We support custom designs and mould manufacturing for specific body styles.

Global Logistics

DDP shipping service for samples (door-to-door). For batch orders, we offer CIF, DDP, or DDU arrangements to suit your requirements.

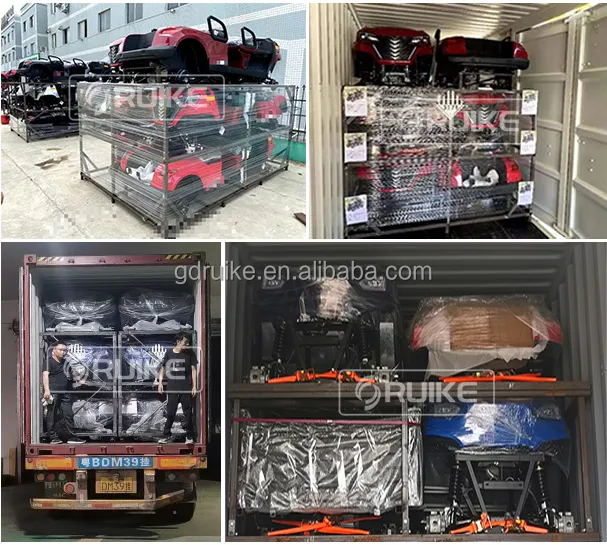

Production & Packaging

LCL Shipping: Wrapped in film, fastened to a steel crate, and covered by galvanized steel plates.

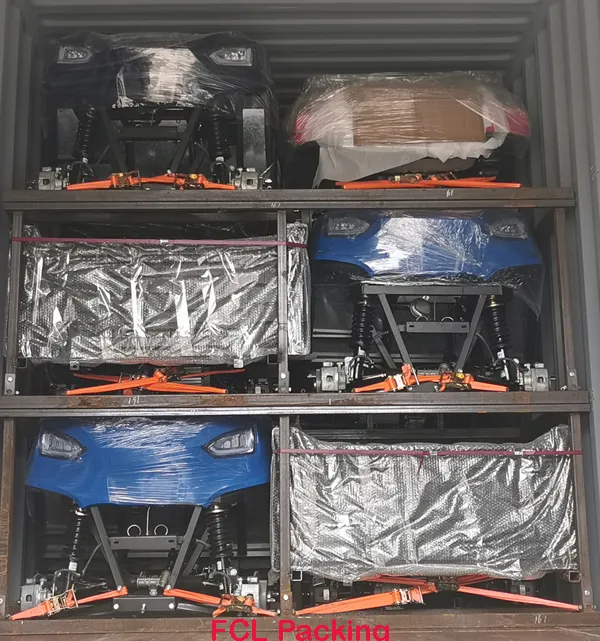

FCL Shipping: Packed in steel crates and secured for maximum safety during sea transit.

Frequently Asked Questions

Do you customize vehicles based on special requests?

Yes, we customize vehicles according to special requests with reasonable costs and lead times, provided the customization does not require chassis modification.

What is your standard warranty term?

We provide a 1-year warranty. For failed parts under warranty, we cover repair costs if fixable locally; otherwise, we send free replacements and cover freight costs.

Do you provide technical support and manuals?

Yes, we provide technical support via email and phone. We also provide full parts manuals for easy spare part identification.

Can you provide assembly services for SKD/CKD orders?

SKD reassembly is straightforward bolt-and-nut work. For high-volume CKD orders, we can send technical personnel to provide on-site assembly instructions.

Do you accept OEM orders?

Yes, we accept OEM orders provided the quantity is reasonable (typically 300-500 units per year).

What is your typical payment term?

For new customers, it is usually 30% T/T deposit and 70% T/T before loading. Irrevocable L/C at sight is also accepted. Terms for long-term partners are more flexible.
