📋 Basic Specifications
Operating Voltage
+/–25% of Nominal Voltage
Operating Temp
–40°c to +85°c
🚀 Product Description
🔍 Overview

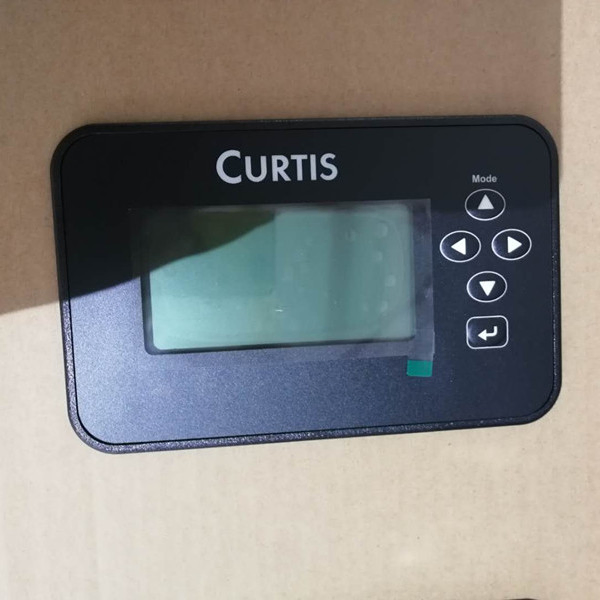

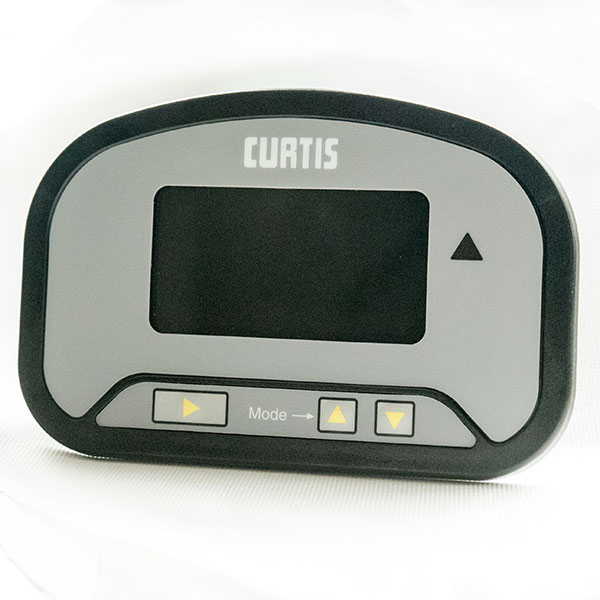

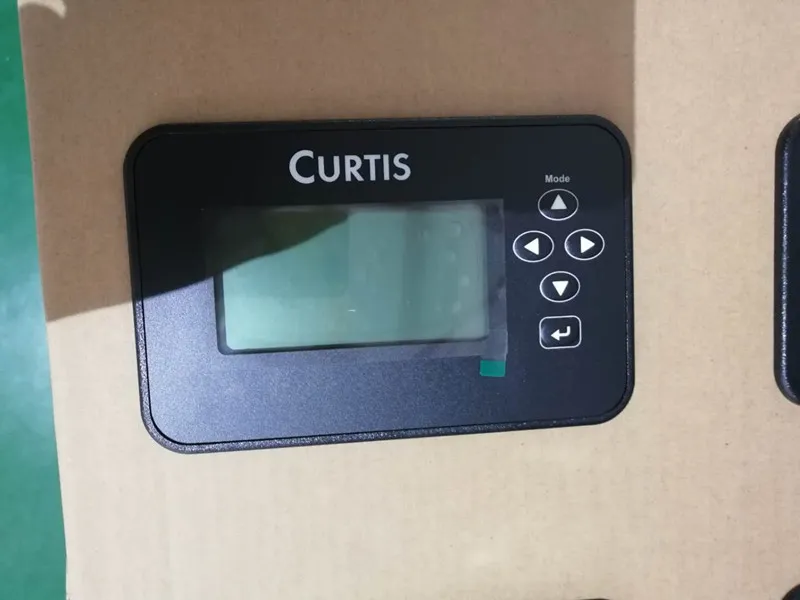

The CURTIS enGage IV instrument panels are widely used as dashboards for industrial and commercial battery-powered motor driving systems. This includes material handling vehicles, outdoor power and construction equipment, engine-driven stationary equipment, commercial cleaning equipment, and light-on-road vehicles.
⭐ Key Features
- Fully customizable instrument tailored to specific applications and needs.
- Combines analog, digital, and CAN functionality in one single instrument.
- CAN communication allows seamless interconnectivity with motor controllers.
- Microprocessor-based logic reduces the need for auxiliary vehicle circuits.

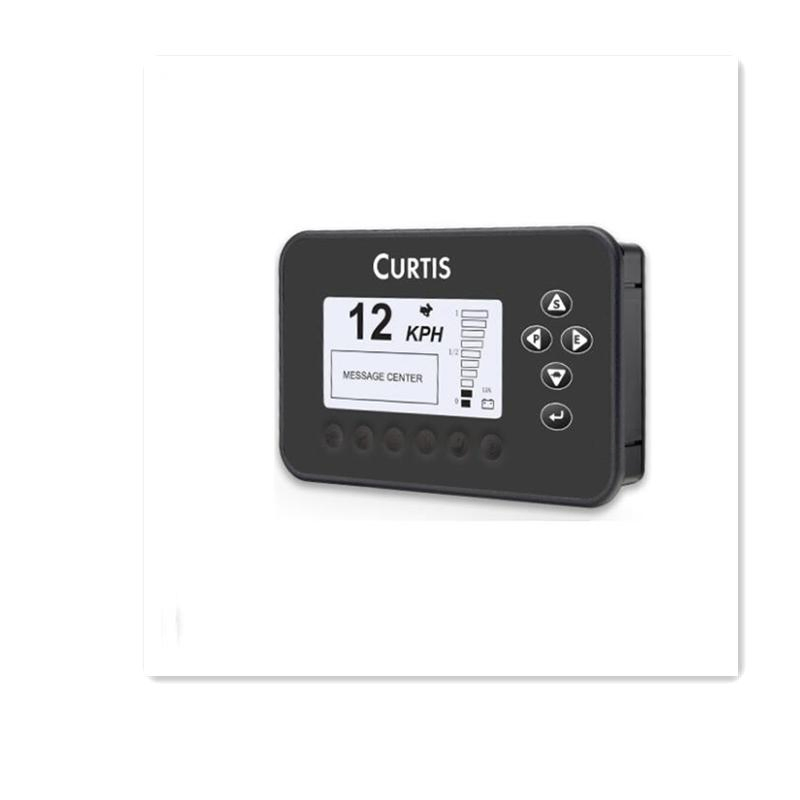

- Large, easy-to-read dot matrix LCD with backlighting for all lighting conditions.
- Replaces up to 4 traditional gauges with simultaneous multi-function viewing.
- Up to 6 switched inputs to track critical parameters like over-temperature and low fuel.
- Password-protected field programming for maintenance and battery profiles.
- IP65 rated front panel ensures performance in the harshest environments.

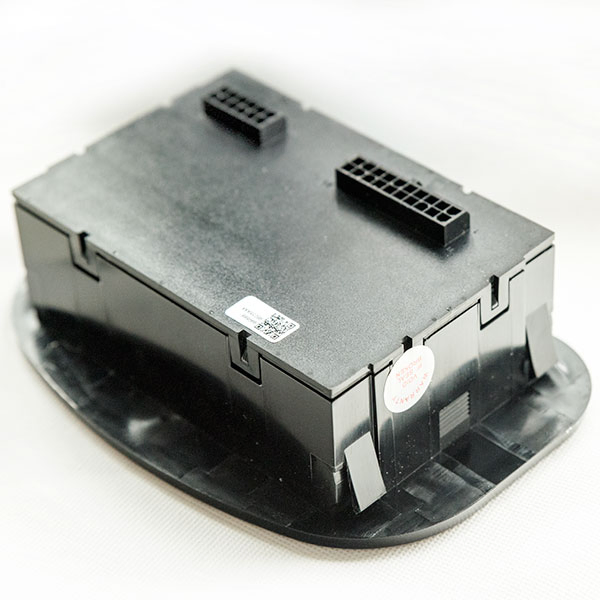

- Easy Snap-Fit design eliminates the need for traditional mounting hardware.
🏭 Manufacturing Facility
❓ Frequently Asked Questions

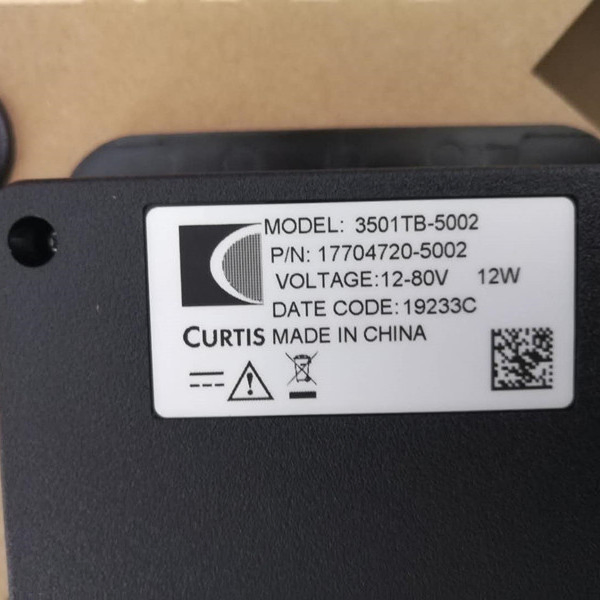

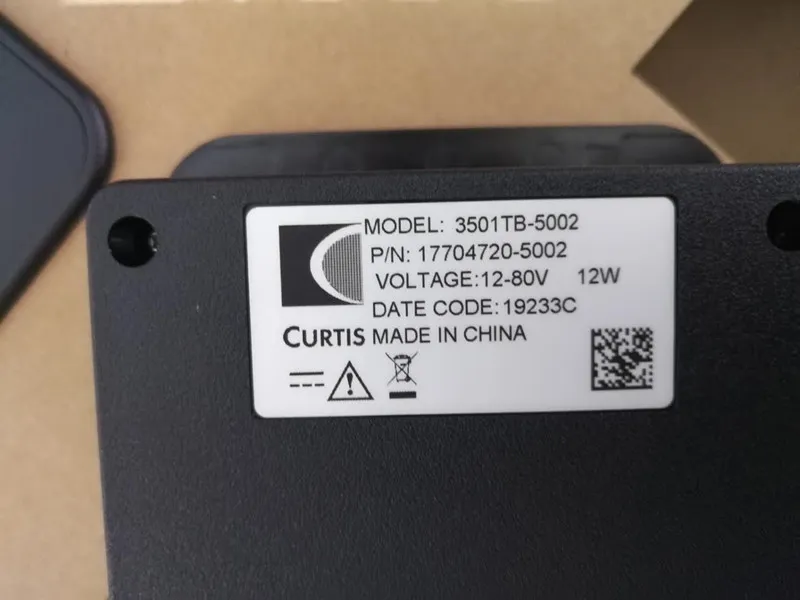

What is the voltage range for the Curtis 3510?
The Curtis 3510 supports multiple voltage options ranging from 12V to 80V, with an operating tolerance of +/- 25% of the nominal voltage.
Is the instrument panel waterproof?
The front panel is IP65 rated, which provides excellent protection against dust and low-pressure water jets, making it suitable for harsh environments.
What kind of display does it use?
It features a 10-digit LED/LCD dot-matrix display with customizable backlighting (typically green or white) for clear visibility.
Does it support CAN communication?
Yes, the enGage IV includes CAN functionality, allowing it to communicate seamlessly with other system components like motor controllers.
What are the typical applications for this dashboard?
It is commonly used in golf carts, forklifts, commercial cleaning equipment, and various battery-powered industrial vehicles.
Can I customize the display icons?
Yes, the unit is fully customizable, allowing OEMs to design their own interface, warning icons, and advisory lines.
