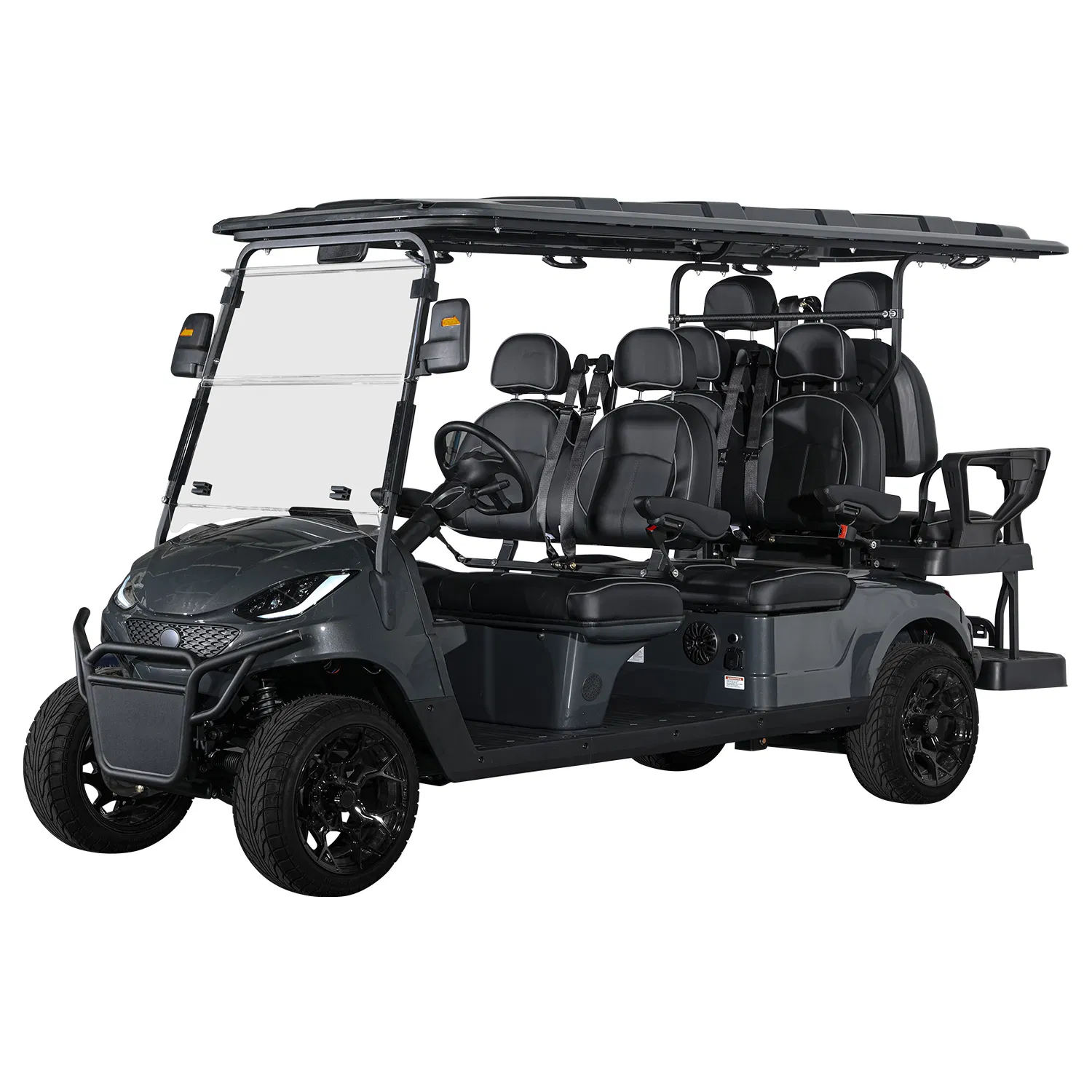

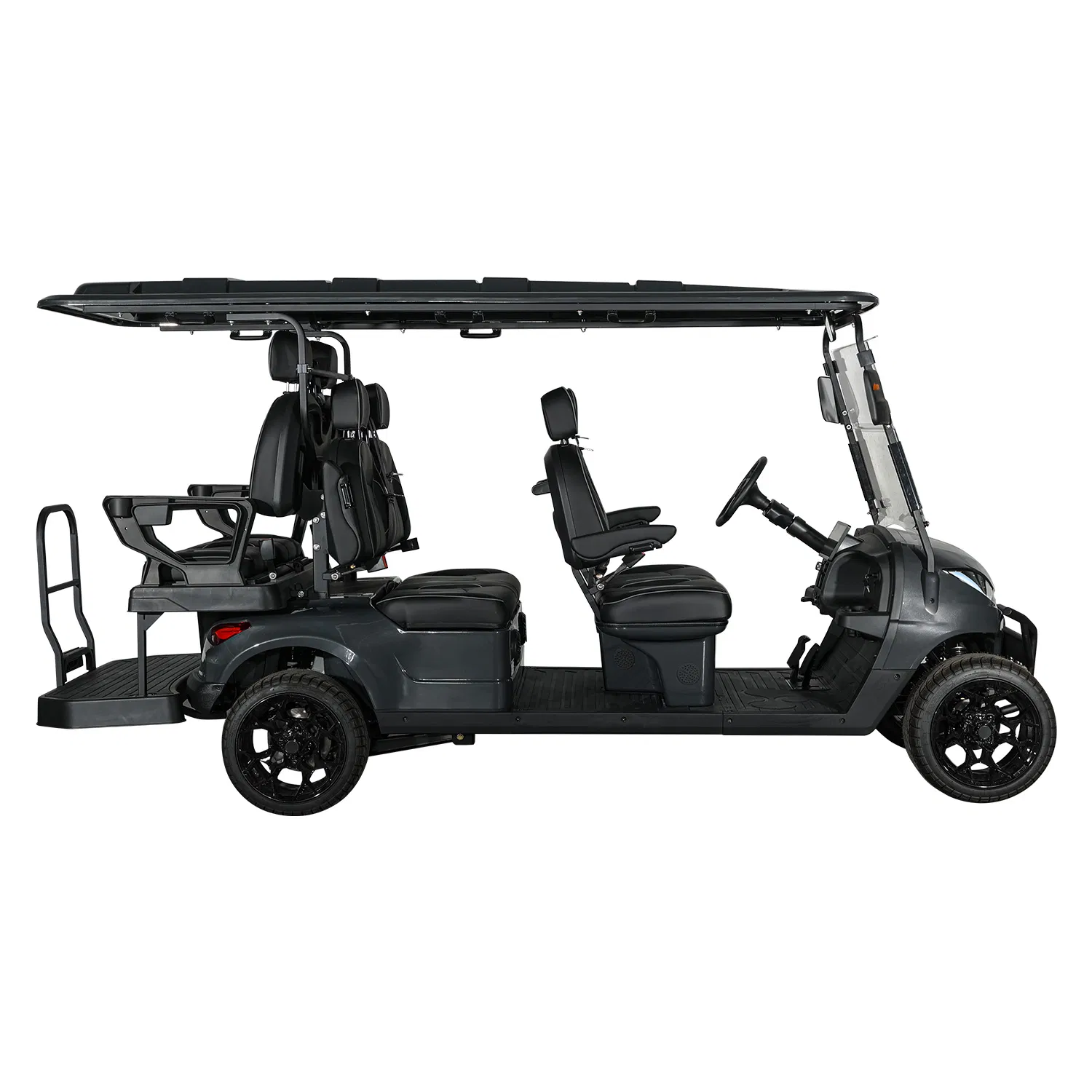

Mingni Golf Carts
1 / 5

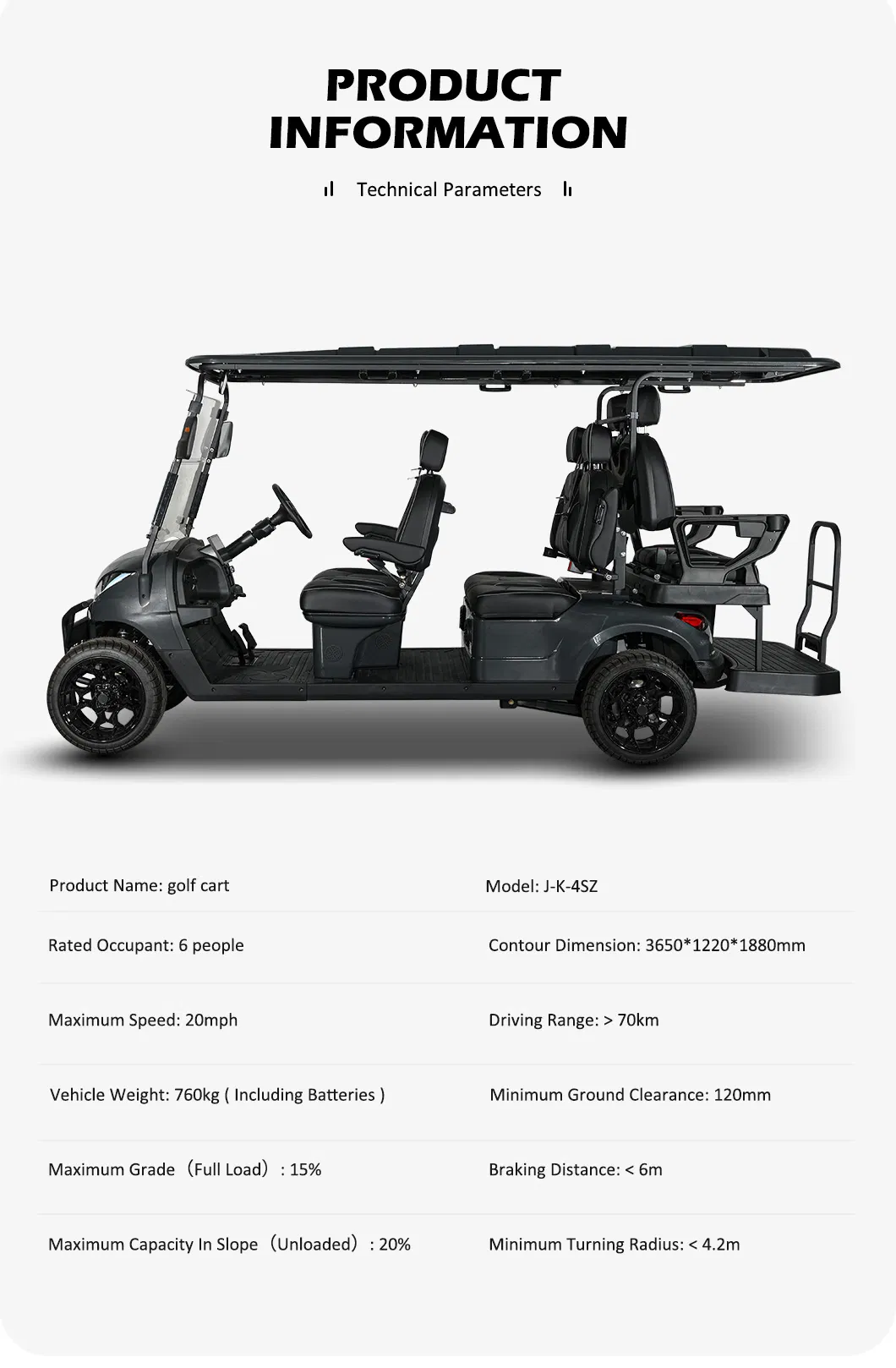

| Model NO. | J-K-4SZ |
| Power | Motor: 5kw(AC) Mahler Motor |
| Power Fuel | Electric |
| Maximum Speed | 20-30 km/h |
| Gradeability | <20% |
| Suitable for | Golf Course, Tourist Area, Villa, Park |
| Certification | ISO, BV, TUV |
| Voltage of Battery | 48V |
| Color | Supply Customize Color |
| Charge Time | 8h-10h |
| Brakes Distance | <6 M |
| Tire Size | 205/50-10 (Tire Diameter 460mm) |
| Brake System | Front Disc + Rear Drum |
| Specification | 3650*1220*1880mm |
| Production Capacity | 1000 Unit/Units Per Month |
| Package Size | 268.00cm * 115.00cm * 84.00cm |
| Package Gross Weight | 830.000kg |
| Transport Package | Qty/20'gp: 7units Qty/40'hq: 21units |
| Electrical System | |
| Controller | 48V |
| Battery | Lead-Acid & Lithium |
| Motor | 5KW(AC) Mahler motor |
| Charger | On board charger, 48V/25A |
| Body And Chassis Configuration | |
| Front Windshield | Injection Molding |
| Roof | Plastic suction art & injection molding |
| Seat | Formed anti-skid floor leather |
| Body | Injection molding |

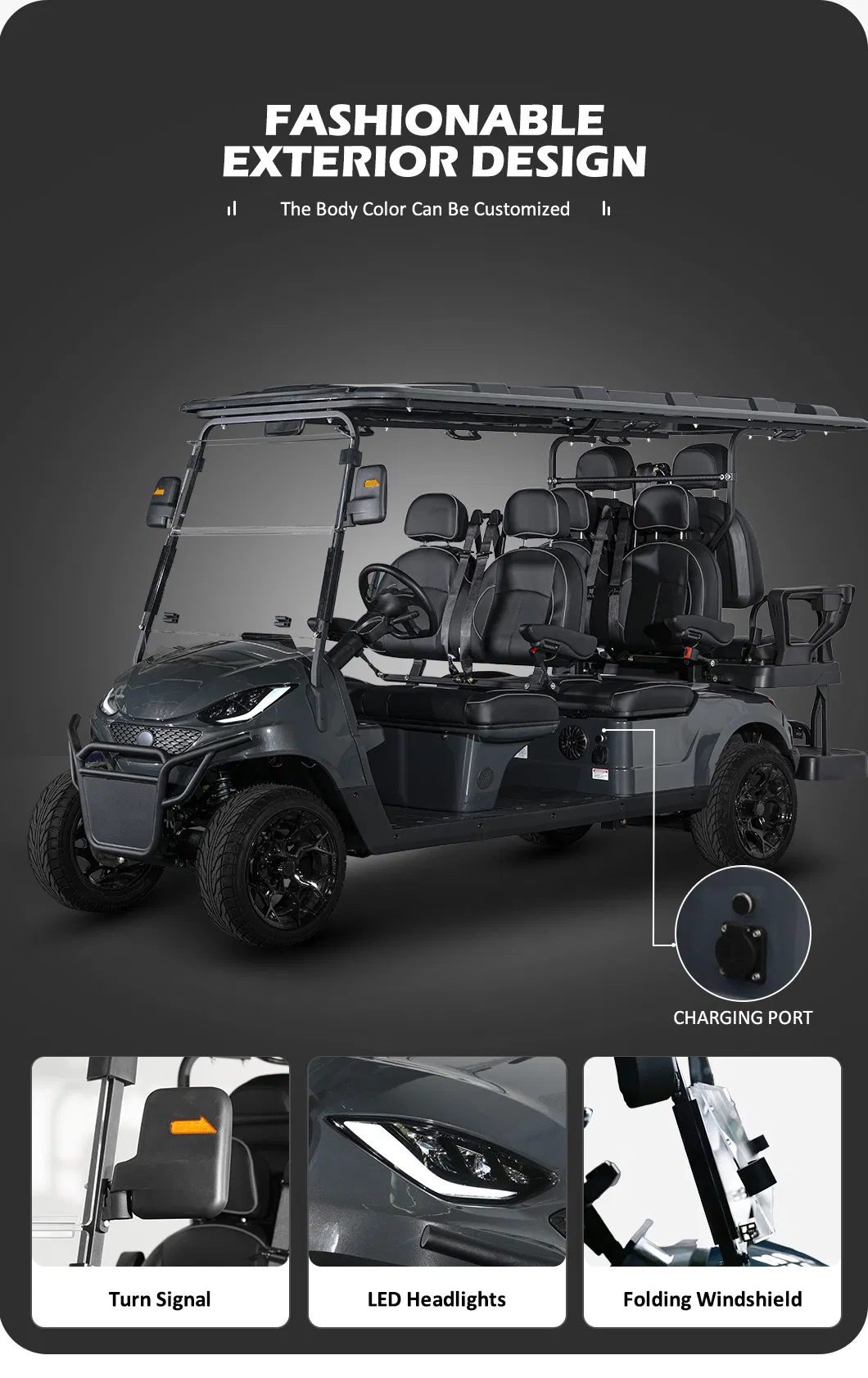

| Lighting and Signals | LED headlamp (low/high beam, steering, clearance); LED tail lamp; snail horn, reversing buzzer |

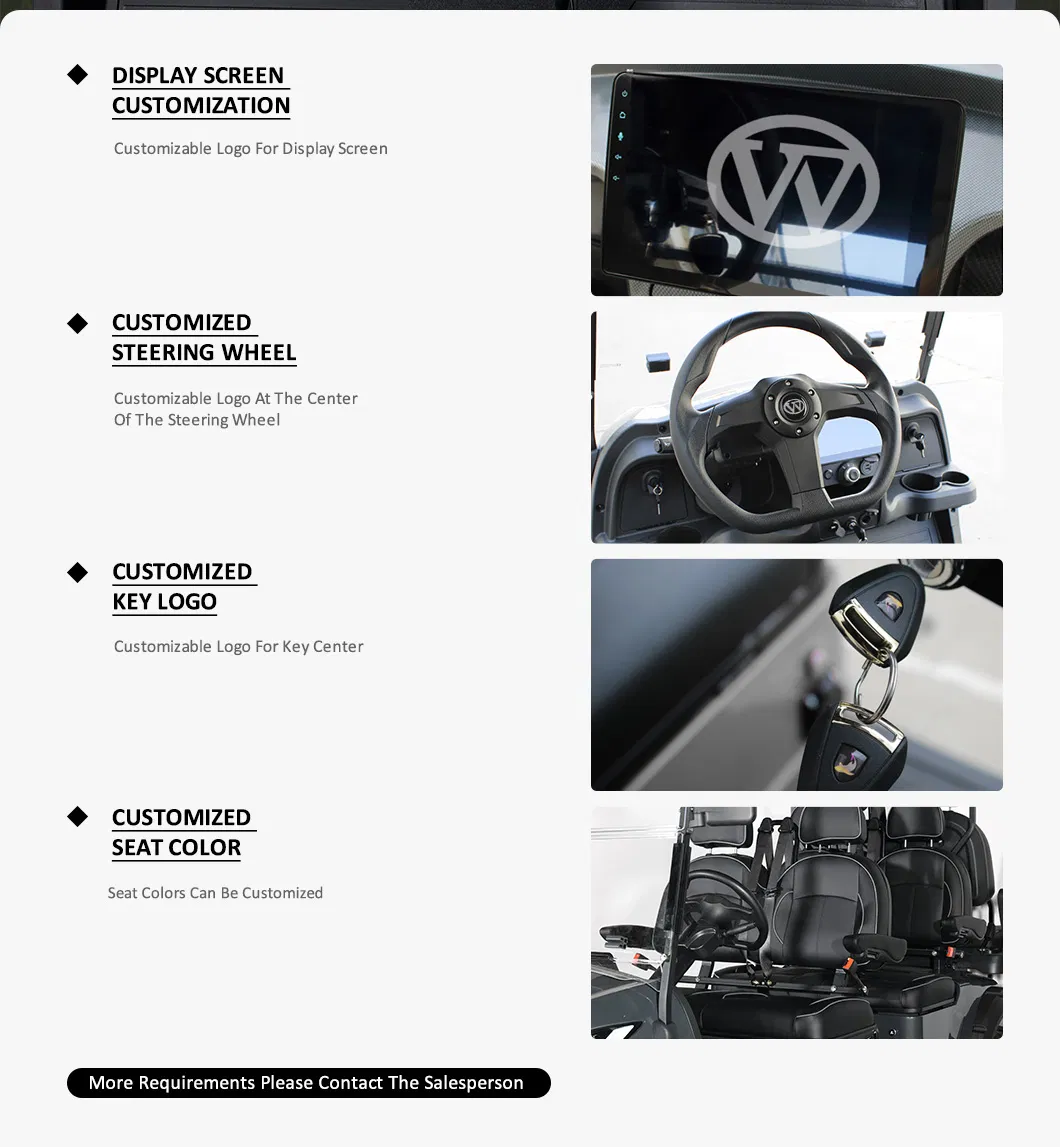

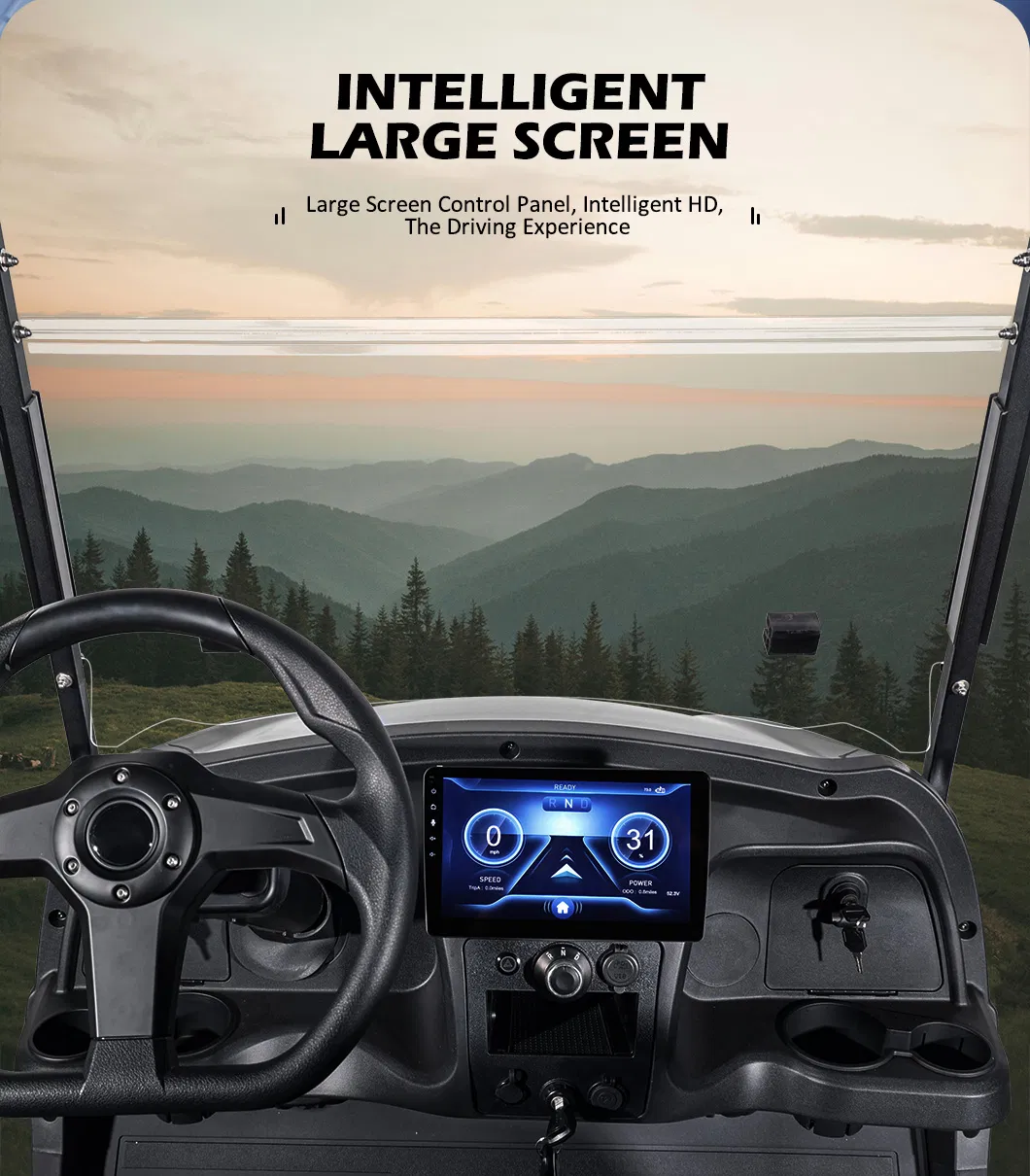

| Instrument Platform | Liquid crystal combination instrument, lock switch, gear switch, cup seat, 12V power |
| Braking Systems | 4 wheel disc brake |

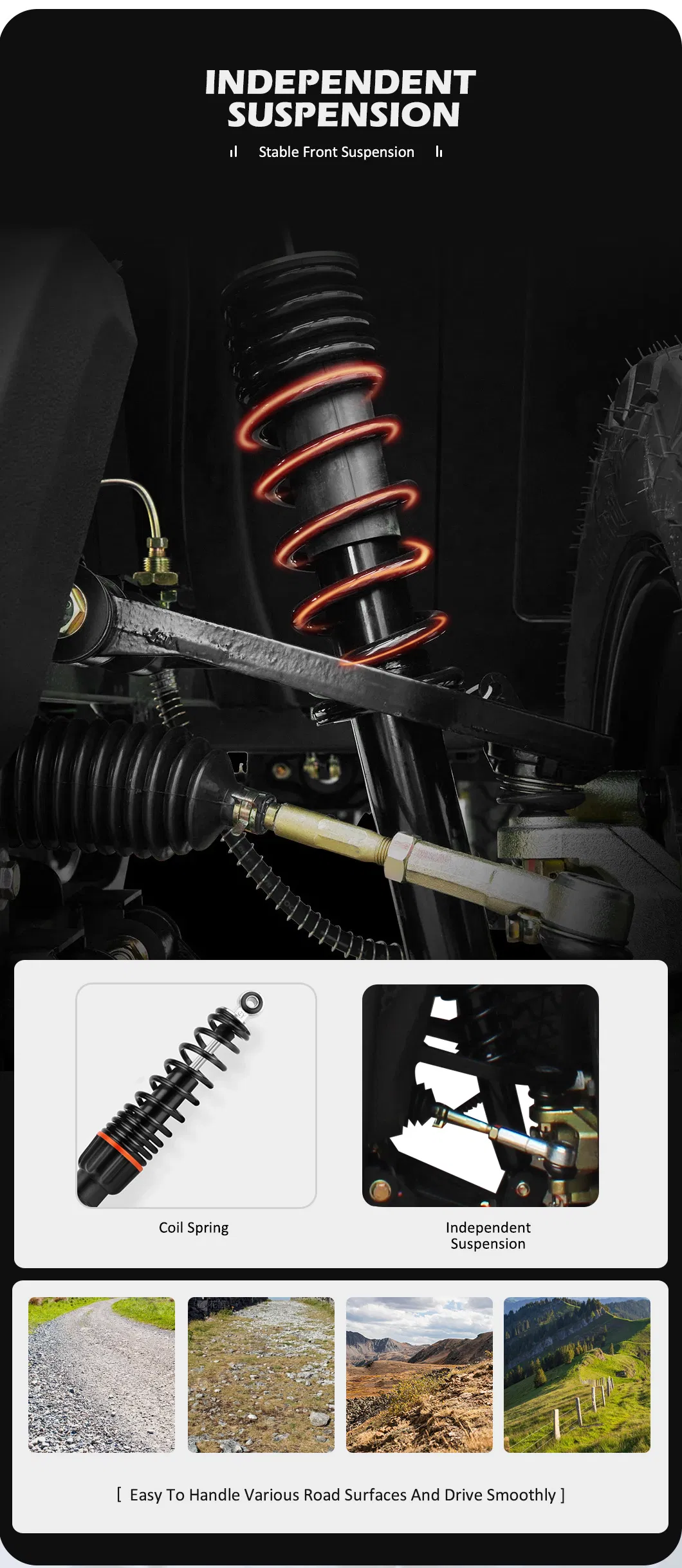

| Front Suspension | Double-arm independent suspension |
| Performance Parameters | |
| Passenger Capacity | 6 |
| Maximum Speed | 20 mph |
| Driving Range | >70 km |
| Minimum Turning Radius | < 4.2 M |
| Braking Distance | < 6 M |
