Basic Specifications
Operating Voltage
+/–25% of Nominal Voltage
Operating Temp
–40°c to +85°c
Package Size
10.00cm * 10.00cm * 10.00cm
Product Presentation
Detailed Description

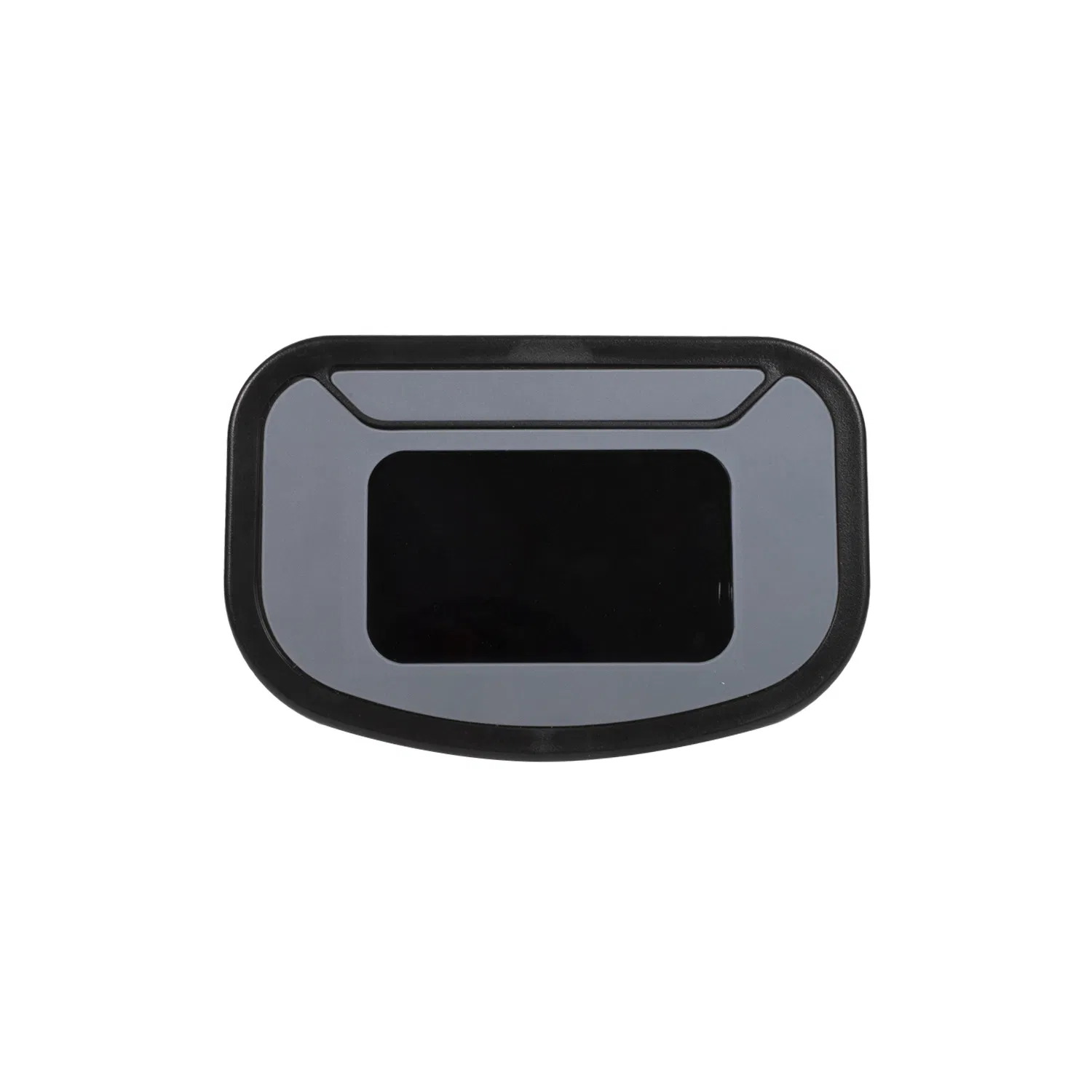

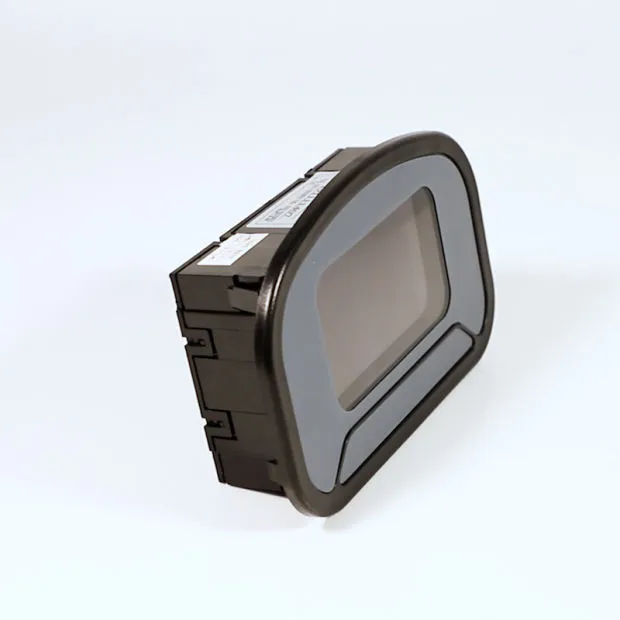

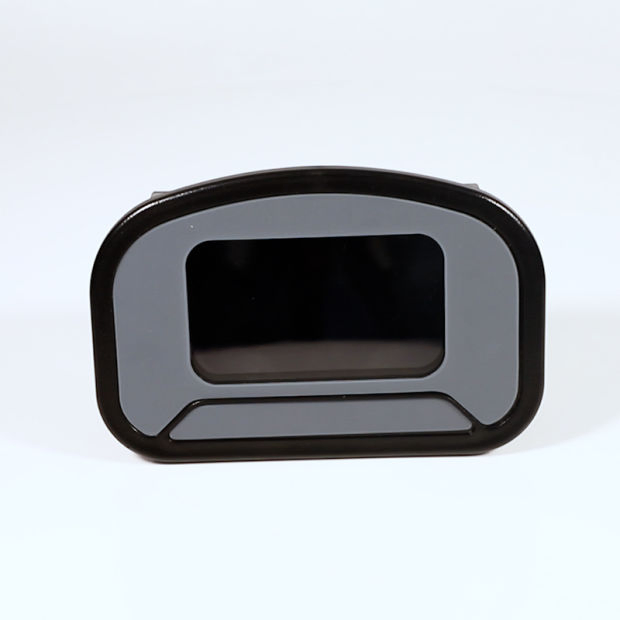

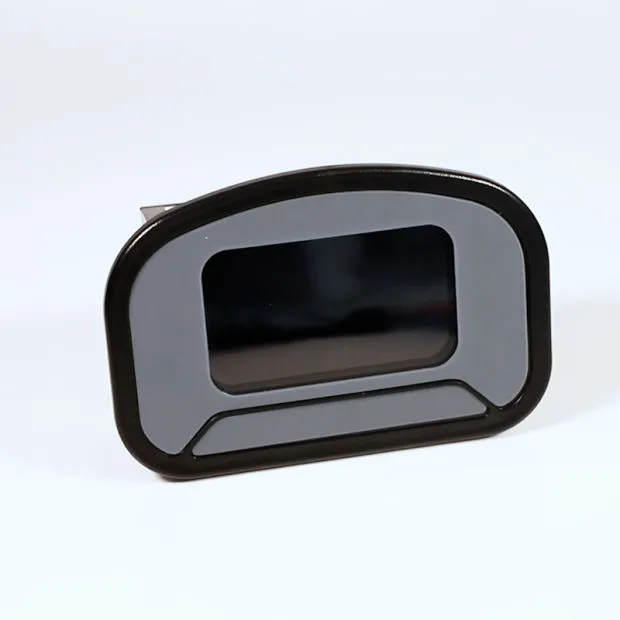

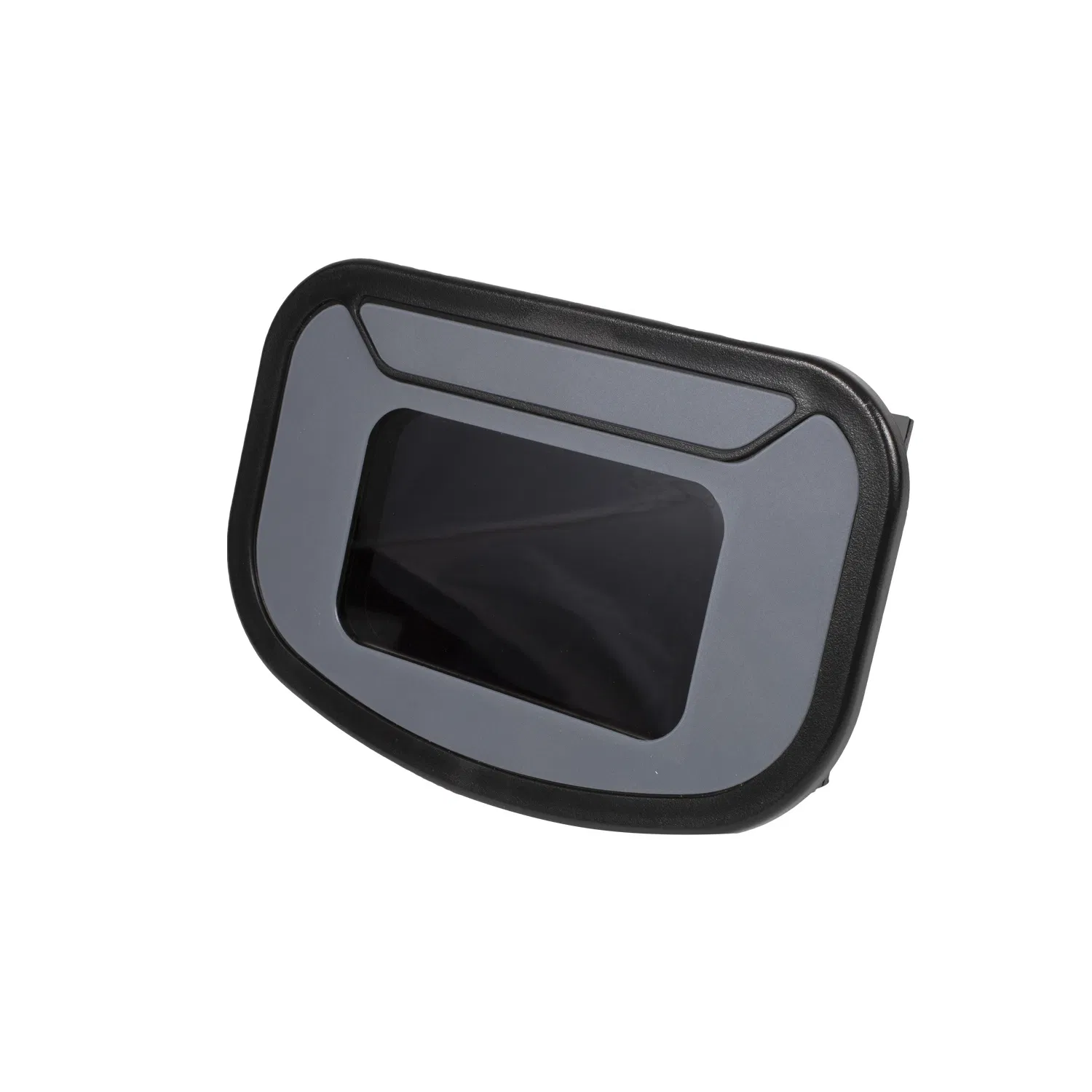

The CURTIS enGage IV instrument panels are widely used as dashboards for industrial and commercial battery-powered motor driving systems. These include material handling vehicles, outdoor power and construction equipment, engine-driven stationary equipment, commercial cleaning equipment, and light-on-road vehicles.
Core Features
- Fully Customizable: Design your own instrument for specific applications with a wide palette of possibilities.
- Multi-Functionality: Combines Analog, Digital, and CAN functionality in one instrument.
- CAN Communication: Seamless interconnectivity with system components like motor controllers.
- Advanced Logic: Microprocessor-based logic reduces the need for auxiliary circuits.

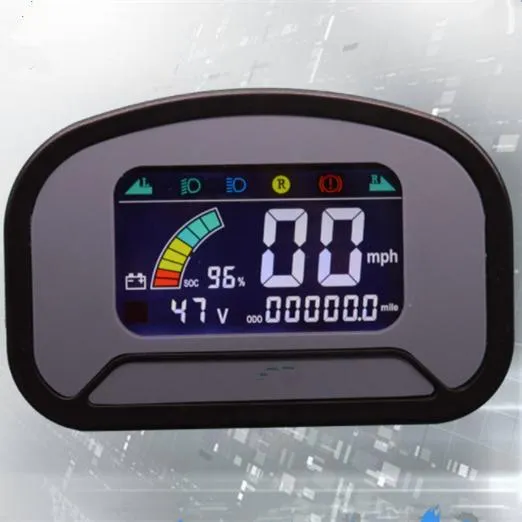

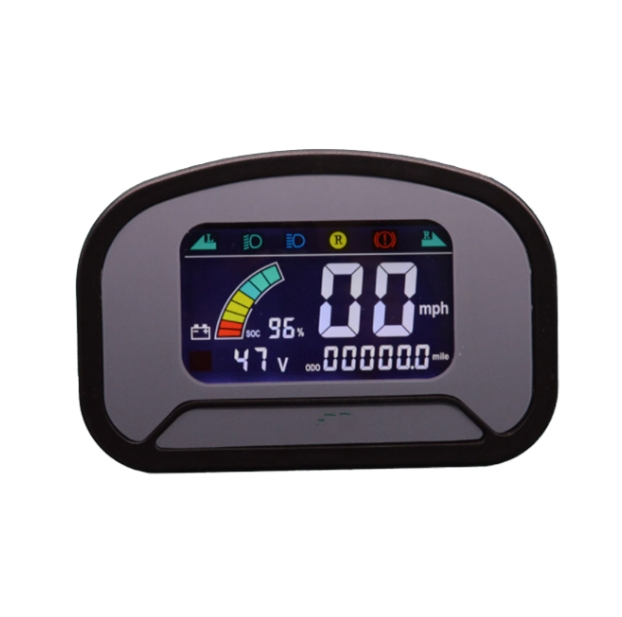

- Dot Matrix LCD: Large, backlit display ensures ideal viewing in all lighting conditions.
- Versatile Display: View up to 4 traditional gauge functions simultaneously (numeric, bar, or needle styles).
- Environmental Protection: IP65 rated front panel assures performance in harsh environments.
- Simplified Installation: Easy Snap-Fit design with integrated connectors lowers production costs.
- Reliable Design: Solid-state construction with no moving parts to wear out.
Industrial Application
Frequently Asked Questions
What types of vehicles is the enGage IV suitable for?
It is designed for industrial and commercial battery-powered systems, including golf carts, material handling vehicles, construction equipment, and light-on-road vehicles.
Is the display readable in direct sunlight?
Yes, the enGage IV features a large dot matrix LCD with backlighting, making it easy to read in various lighting conditions, including outdoor environments.
What is the environmental protection rating of the panel?
The front panel is IP65 rated, which means it is protected against dust ingress and low-pressure water jets, ensuring durability in harsh conditions.
Does this instrument support CAN communication?
Yes, it features CAN communication functionality, allowing it to interface seamlessly with other vehicle components such as motor controllers.
Can I monitor multiple functions at once?
Absolutely. The enGage IV can replace up to 4 traditional gauges and display multiple functions simultaneously, such as battery state-of-charge, hour meter, and maintenance monitors.
What is the operating temperature range?
The device is designed to operate reliably in extreme conditions, with an operating temperature range from –40°C to +85°C.
